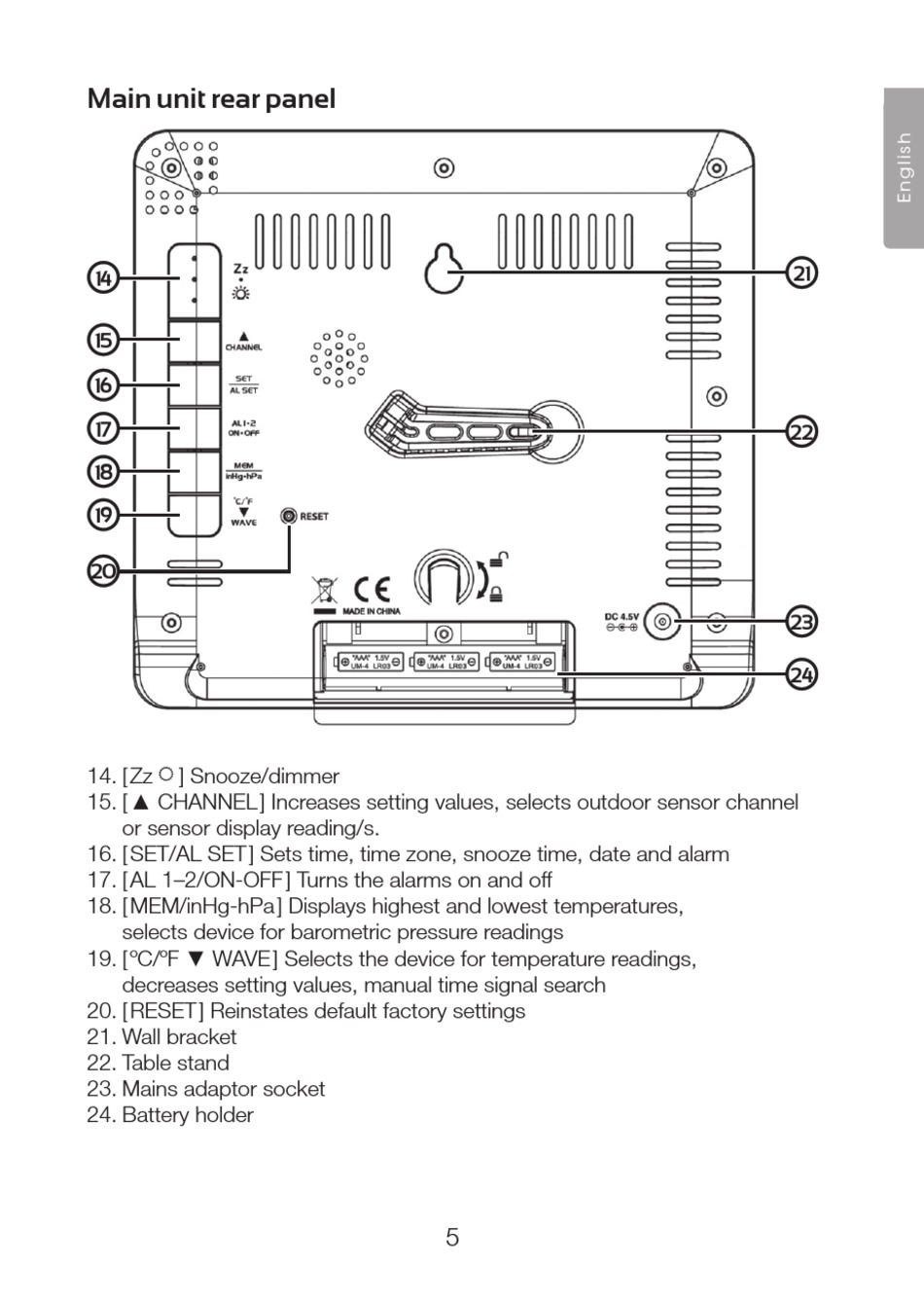

Main unit rear panel

14
15
16
17
18
19
20
14. [ Zz  ] Snooze/dimmer
15. [ ▲ CHANNEL ] Increases setting values, selects outdoor sensor channel
or sensor display reading/s.
16. [ SET/AL SET ] Sets time, time zone, snooze time, date and alarm
17. [ AL 1–2/ON-OFF ] Turns the alarms on and off
18. [ MEM/inHg-hPa ] Displays highest and lowest temperatures,
selects device for barometric pressure readings
19. [ ºC/ºF ▼ WAVE ] Selects the device for temperature readings,
decreases setting values, manual time signal search
20. [ RESET ] Reinstates default factory settings
21. Wall bracket
22. Table stand
23. Mains adaptor socket
24. Battery holder
5
21
22
23
24
