Owners manual
Many thanks for buying our Miditech MIDI THRU 7 box. With this little MIDI Tool, the MIDI
THRU 7 box, you can easily play with one keyboard up to 7 MIDI expanders or MIDI devices. You
can connect up to 7 MIDI keyboards or MIDI hardware to one master keyboard. Basically the MIDI
THRU 7 box works like a MIDI THRU box. It multiples the incoming MIDI signal and routes the
data to all 7 MIDI THRU ports. The Miditech MIDI THRU 7 box is MIDI powered and works with
each MIDI conform master keyboard.
Technical specs of the Miditech MIDI THRU 7 box:
● Easy to connect to your keyboard with standard MIDI cables
● LED for MIDI Input activity
● USB powered
The cabinet of the MIDI THRU 7 box is clearly marked.
Panel:

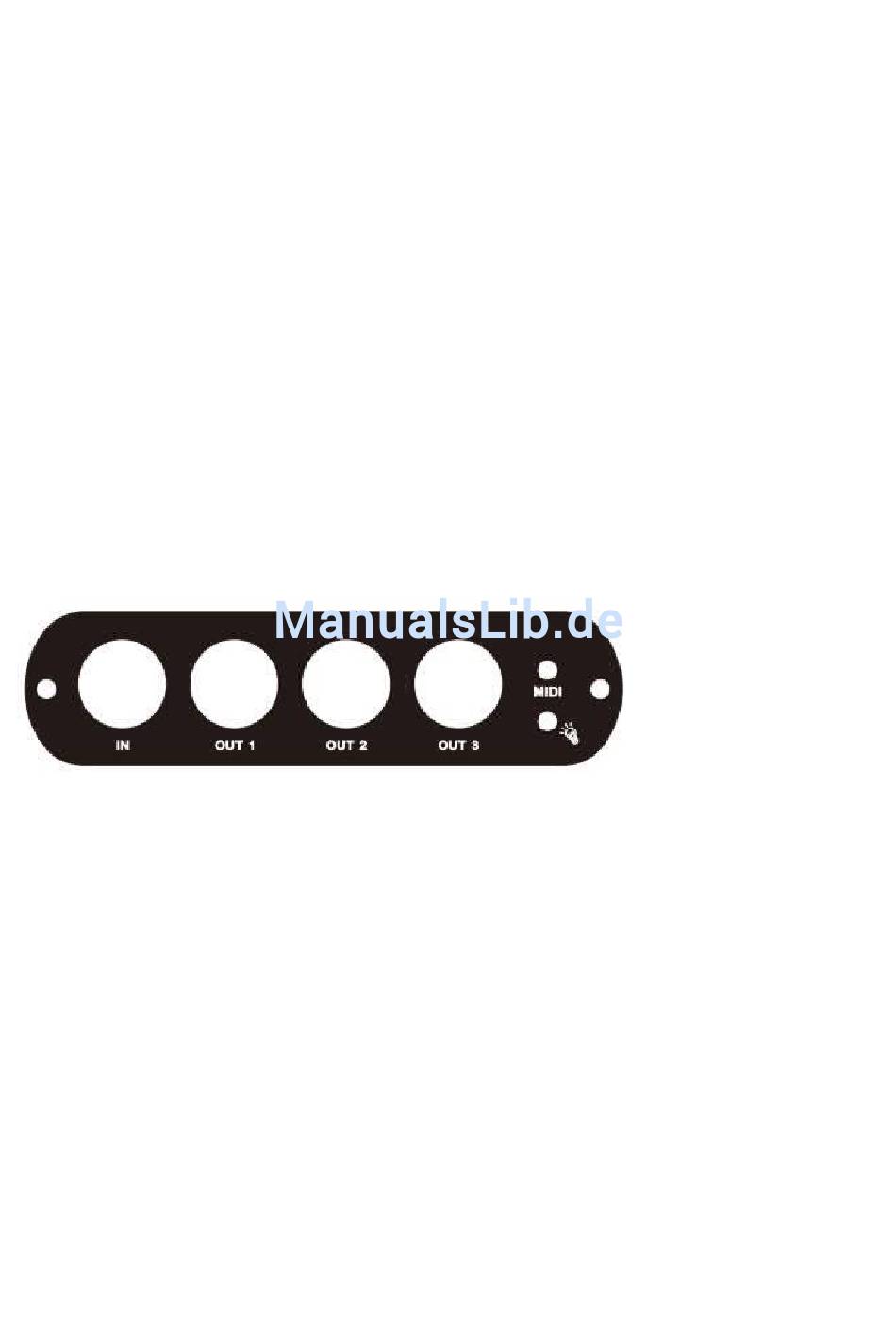

Front:
● Interface: 1xMIDI IN Interface , 3xMIDI OUT Interface .
Connect to external midi device's MIDI interfaces. Note: Use the MIDI IN connector to connect the
device, you need an external power supply keyboard.
● LED: 1x Power LED , 1x MIDI LED
Power LED light up when MIDI THRU 7 Powered. MIDI LED light up when MIDI Input activited.
