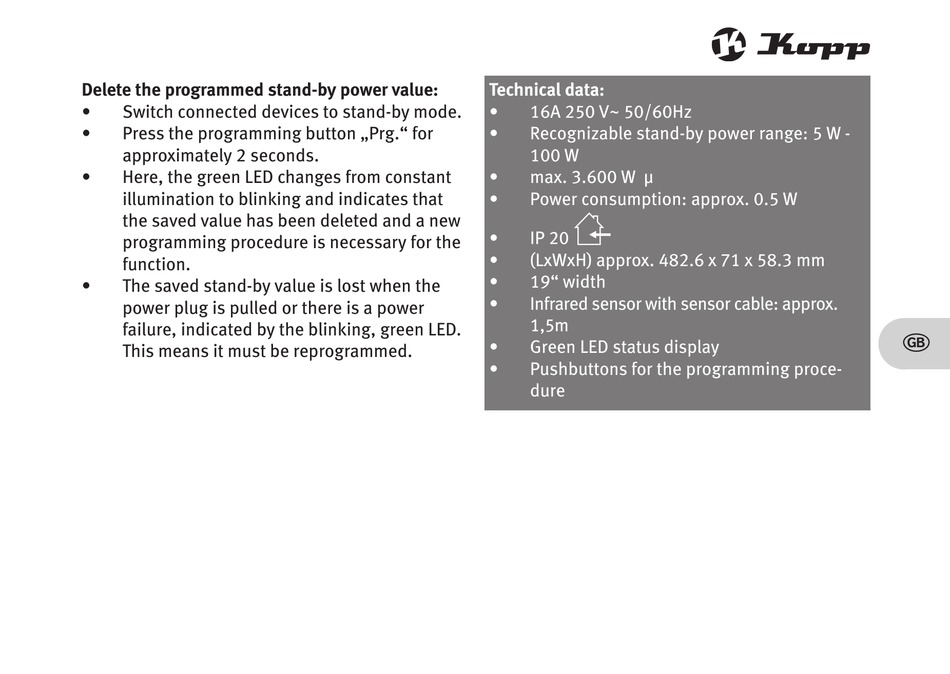

Delete the programmed stand-by power value:
•
Switch connected devices to stand-by mode.
•
Press the programming button „Prg." for
approximately 2 seconds.
•
Here, the green LED changes from constant
illumination to blinking and indicates that
the saved value has been deleted and a new
programming procedure is necessary for the
function.
•
The saved stand-by value is lost when the
power plug is pulled or there is a power
failure, indicated by the blinking, green LED.
This means it must be reprogrammed.
Technical data:
•
16A 250 V~ 50/60Hz
•
Recognizable stand-by power range: 5 W -
100 W
•
max. 3.600 W µ
•
Power consumption: approx. 0.5 W
•
IP 20
•
(LxWxH) approx. 482.6 x 71 x 58.3 mm
•
19" width
•
Infrared sensor with sensor cable: approx.
1,5m
•
Green LED status display
•
Pushbuttons for the programming proce-
dure
