Lamp exchange
If the display shows permanently "HI" (> 10.2 % CO
replaced. A lamp module replacement is supplied.
The lamp module replacement (# 0420.316) is attached onto the front plate panel inside the
device.
1. Switch-off the device. Pull out the net cable plug!
2. Open the casing cover by removing the 4 lateral screws. Carefully remove the cover and take
off the cover grounding from the plug.

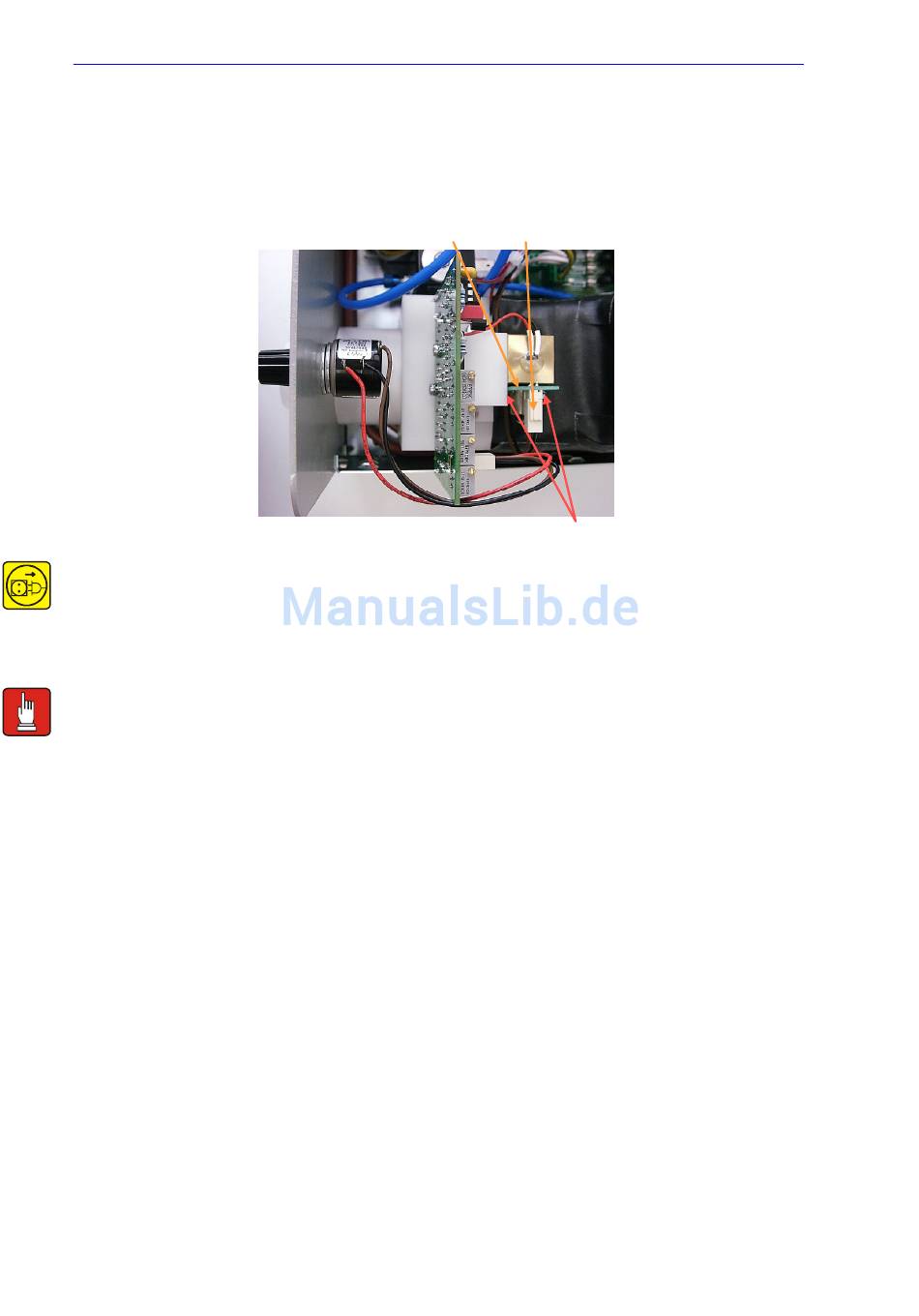

3. The lamp module (A) (A) is located in the rear area of the device on top of the heating unit.
(A) (A)
4. Remove the cable (black/brown) from the lamp module (D)
5. Remove lamp module from the brass block by removing the 2 screws. Clean the glass body of
the new lamp with ethanol.
6. Screw on the new lamp module (2 short screws) applying light pressure. The cable connection
should face upwards. Put on the cable (black/brown) again.
7. Attach cover grounding, put on the casing cover and fix it with the screws.
8. Switch-on the device and set the CO
after approx. 2 min. If necessary set the CO
window open (see section setting the CO
If you have further questions please consult our Technical Information Service to support you in
case of a technical problem:
e-mail: support@pecon.biz
web: http://support.pecon.biz
In the support section you can also download the Software „IRC – Incubation Remote Control".
05 – 2009
Manual: CTI-Controller 3700
2
A A A A A A A A
Do not touch the glass body with your fingers!
value to 0.0 with the potentiometer "sensor calibration"
2
value again to zero after approx. 15 min. with the
2
zero value).
2
) the lamp in the I.R. sensor module must be
B B B B B B B B
C C C C C C C C
(D).
(D) (D)
