To fit this timer kit, proceed as follows
1. Undo all the screws which fix the
casing to the hob as shown in
figure 1. Warning: undo the
screws on all sides.
2. Open the casing, taking care to
extract the bundle of cables "F"
(fig.
control panel to the power circuit
board correctly. Once the casing
is open, after removing the mylar
sheet "E", fit the kit as shown in
figure 2.
3. Centre the shims "A", the timer
circuit board "B" and the washers
"C" in the 3 pins inside the
control panel, screw on the fixing
nuts "D" with a 7 spanner and
replace the mylar sheet "E".
4. Reconnect the bundle of cables
"F" and also connect the bundle
"G" which connects the timer
circuit board to the power board
(see figure 3).
5. Fix the hob back onto the casing
by
described in point 1 back into
place.
Downloaded from www.Manualslib.com
3) which connects the
screwing the
manuals search engine
TIMER KIT

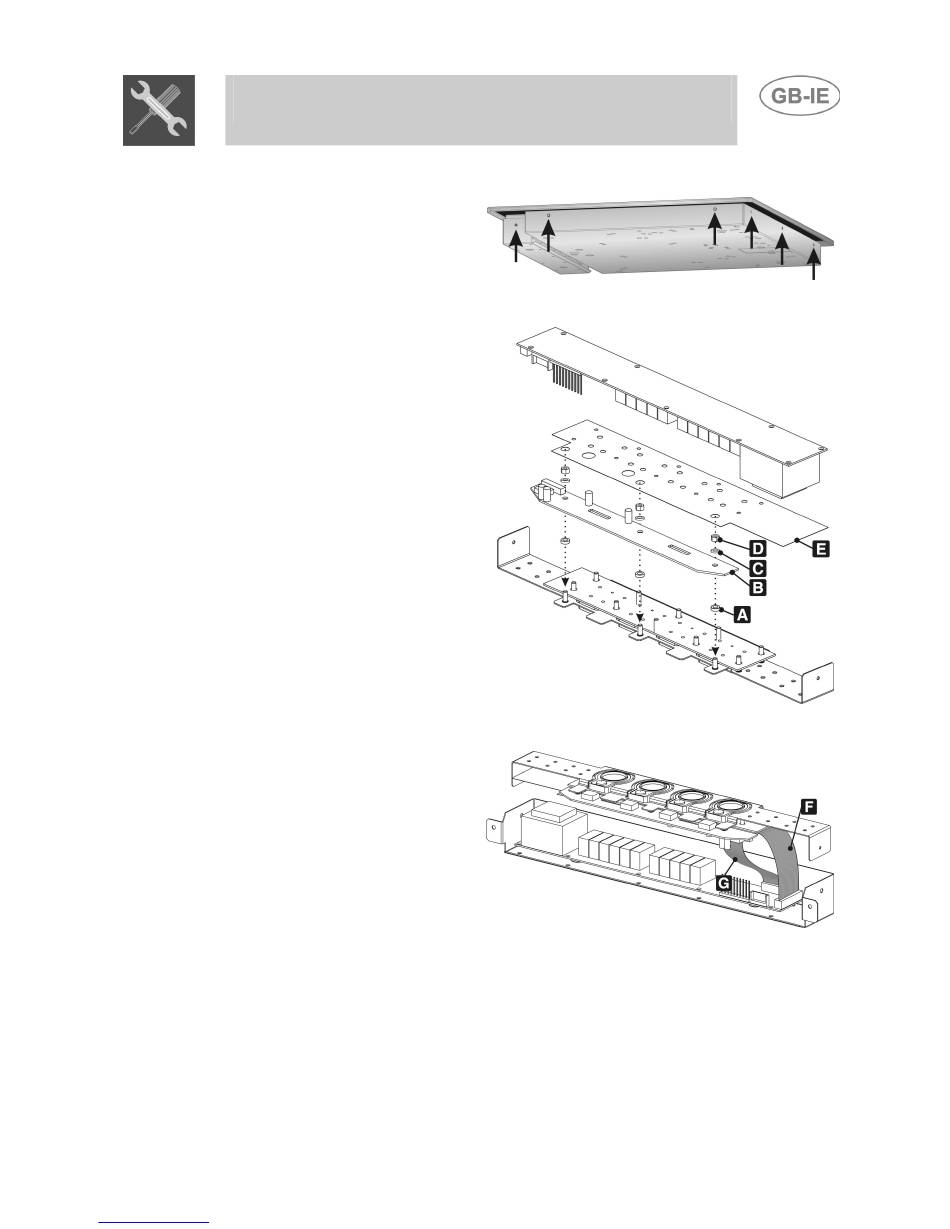

FIG. 1
