• Maintenance work, adjustments and repairs may be carried out only by a
professional or at a specialist workshop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.
Preparing installation
Observe the chapter "Safety instructions"!
• Install the LED floodlight to a stable surface only. Depending on the surface, use
suitable screws and screw anchors.
• The LED floodlight must be secured with a 10/16 A fuse within the on-spot sub-
distribution. Install a earth leakage circuit breaker (ELCB) in front of that.
Installation and connection
Follow the instructions in the chapter "Preparing installation"!
When drilling installation holes or tightening screws, make sure not to
damage any existing cables or pipes (also water pipes).

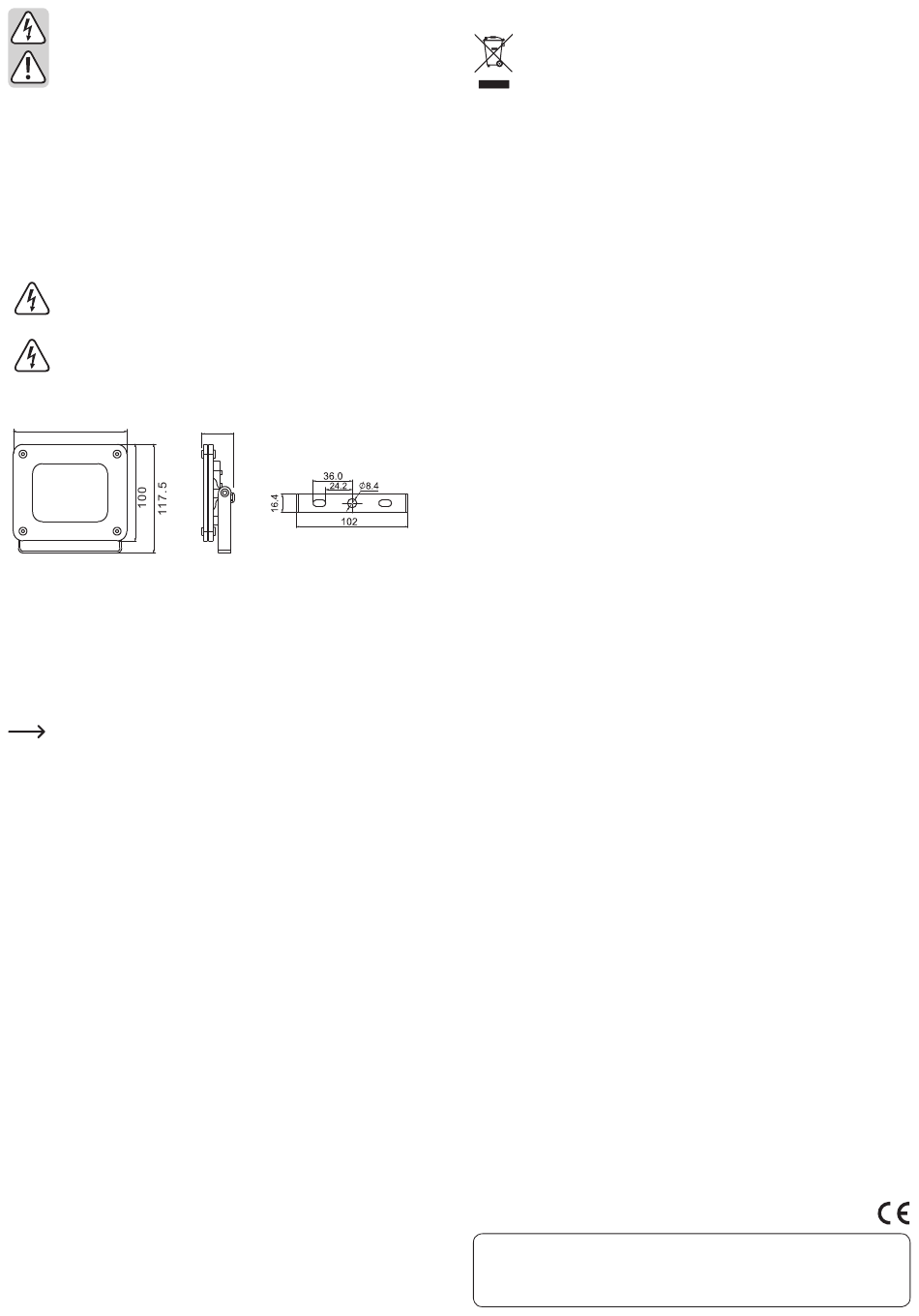

Dimensions
117.5
• Attach the LED floodlight by its bracket to a suitable surface using two or three
screws and dowels. The bracket features two long holes. Attach one of the screws
in the middle in order for the floodlight to be secure. Use screws and dowels that are
suitable for the installation surface. Do not install at heights of more than 3 meters.
• If necessary, loosen the hexagon socket screws on the side of the bracket in order
to align the floodlight. To do so, use a suitable Allen wrench.
• Alternatively, install the LED floodlight on a horizontal surface. Set the angle of
the floodlight by adjusting the bracket accordingly. Make sure the floodlight rests
securely and cannot tip over or be knocked over by persons or children.
It is recommended installing a switch for turning the floodlight on/off.

Maintenance and cleaning

• Never point the jet of the garden hose or any high pressure cleaner onto the product.
• This product does not require maintenance. Maintenance or repairs may be carried
out by a professional only. The LEDs are permanently installed and non-replaceable.
• Disconnect the mains plug from the mains and let the floodlight cool down
sufficiently before cleaning.
• Use a clean, soft, dry cloth to clean the product. Dust can be removed easily with a
clean, soft brush.
• Do not use any aggressive, chemical or abrasive cleaning agents as these may
cause surface discoloration or even changes in the material.
32.8
unit(mm)
Disposal
Electronic devices are recyclable waste and must not be disposed of in the
household waste.
At the end of its service life, dispose of the product in accordance with
applicable regulatory guidelines.
You thus fulfil your statutory obligations and contribute to the protection of
the environment.

Technical data

Operating voltage................................220 – 240 V/AC, 50/60 Hz
Protection type ....................................IP65
Protection class ..................................I
Material ................................................Metal, Die-cast aluminum, glass
Installation location ............................Indoors / outdoors
Power consumption............................10 W
Illuminant ..............................................20 LEDs (permanently installed, non-replaceable)
Beam angle ..........................................110º
Colour temperature.............................6000 K (cold-white)
Luminous flux .......................................750 lm
Cable length .........................................approx. 1 m
Cable type.............................................H05RN-F 3G1.0 mm
Operating conditions ..........................-40 to +50 °C, 20 – 95 % RH, non-condensing
Storage conditions..............................-40 to +80 ºC, 10 – 95 % RH, non-condensing
Dimensions (W x H x D)......................117.5 x 117.5 x 32.8 mm (mount vertically)
Weight ...................................................approx. 540 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represents the
technical status at the time of printing.
© Copyright 2016 by Conrad Electronic SE.
