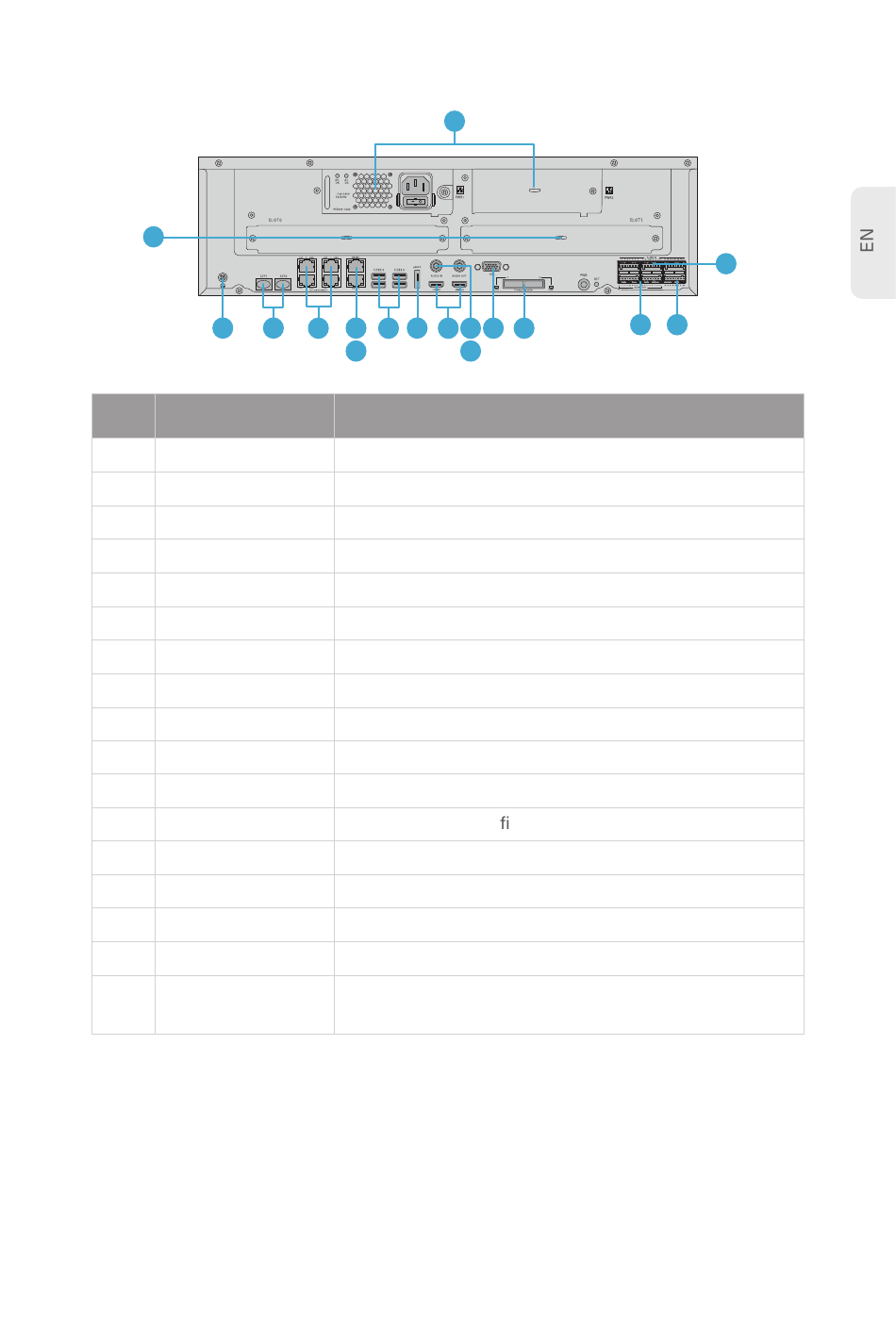

Back Panel Ports

2
3
NO. Ports
1 Power Module Slot
2 Decoding Card Slot
3 Grounding Point
4 SFP
5 RJ45
6 RS485
7 RS232
8 USB
9 eSATA
10 Audio Input
11
Audio Output
12 HDMI Output
13 VGA Output
14
miniSAS
15 Alarm Input
16 Alarm Output
17 Power Interface
4 5 6 8 9
7
Description
Connect to the AC power
Used for decoding cards
Used for grounding
SFP ports for 1G connection
10/100/1000BASE-T ports for Ethernet connection
Connect to an RS485 device
Used for debugging and maintenance
Connect to the mouse
Connect to the storage device
Input the audio signal
Output the audio signal
Output the high-de nition audio and video signal
Output the video signal
Connect to the network storage enclosure
Input the alarm signal
Output the alarm signal
Connect to the DC 12V power for the peripheral
devices, such as alarm devices
1
12 10 13 14
11
15
16 17
