Hardware Overview

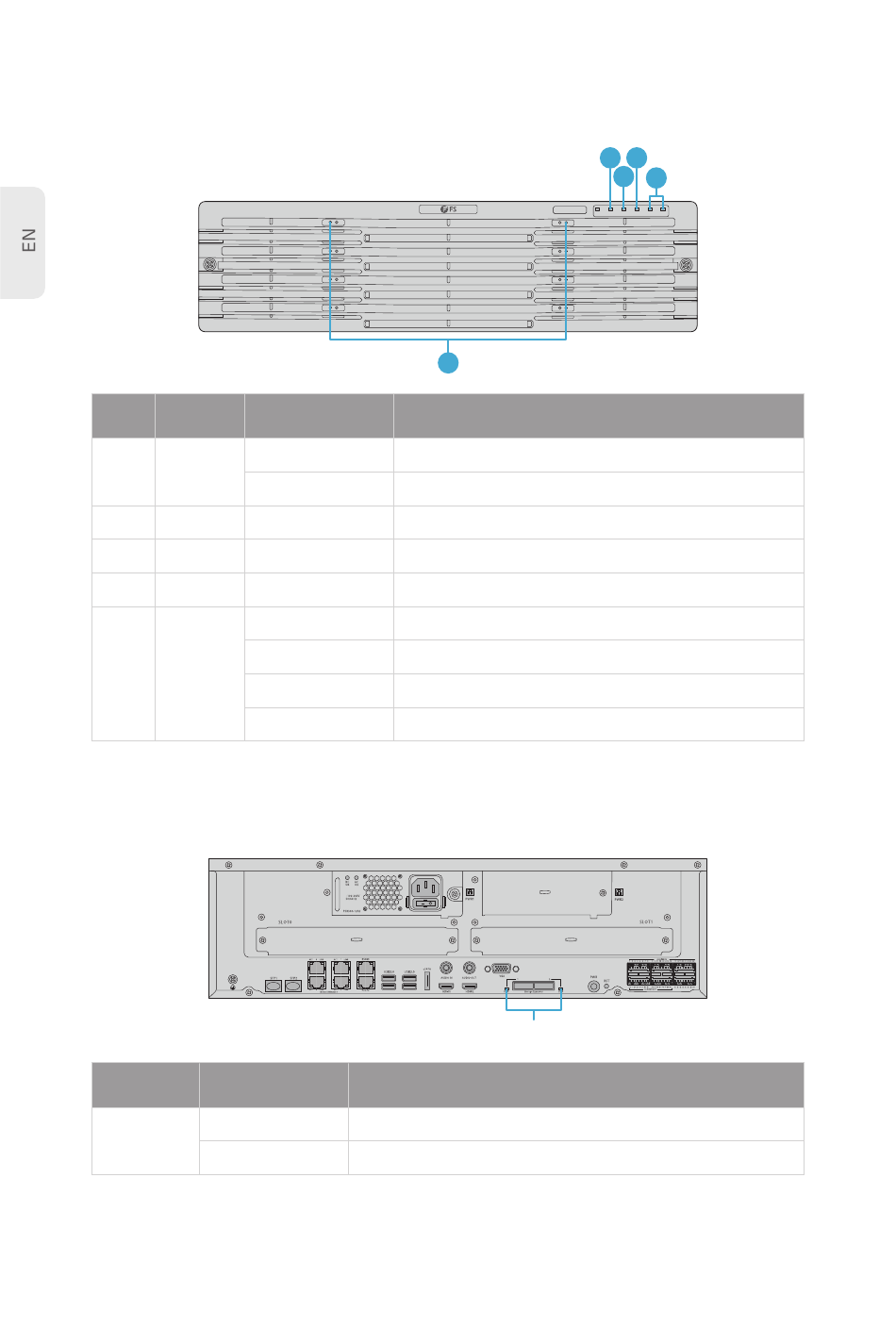

Front Panel LEDs
NO. LEDs
1 RUN
2
ALM
3 NET
4 SLOT 0/1
5 HDD
Back Panel LED
LED State
Steady On
LINK
Blinking
2
1 5
2 6
3 7
4 8
State Description
Steady On The device is in a normal state.
Blinking The device is starting up.
Steady On There is an alarm in the device.
Steady On The device is connected to the network.
Steady On The card is installed.
Steady Green The device is in a normal state.
Blinking Green The device is reading or writing data.
Steady Yellow The device is in an abnormal state.
Blinking Yellow The device is rebuilding the array.
Description
The device is connected to the disk enclosure.
The device is communicating with the disk enclosure.
1 3
IR RUN
9 13
10 14
11 15
12 16
5
LINK
2
4
ALM NET SLOT0 SLOT1
