TYPICAL INSTALLATION

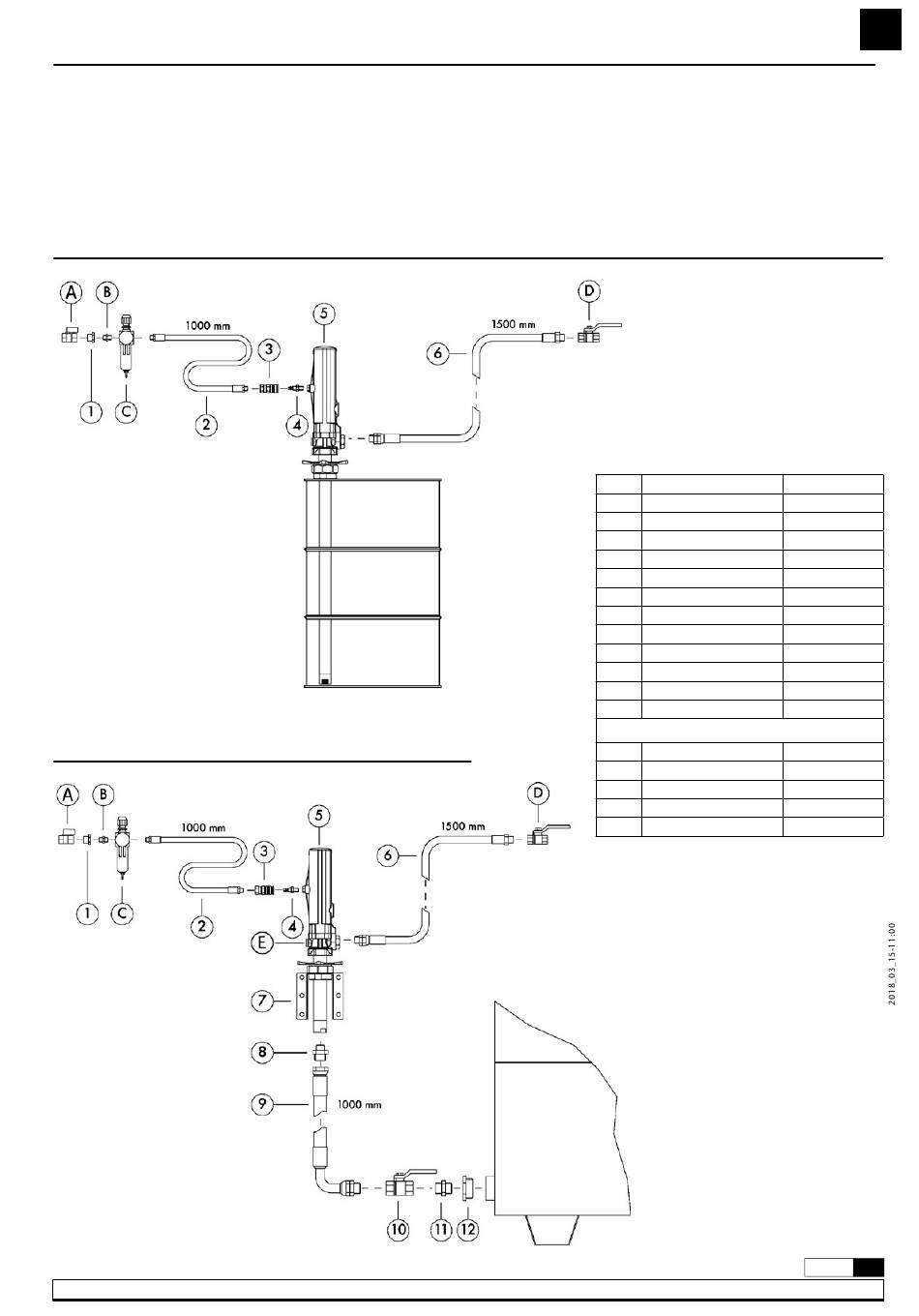

See figures 3a and 3b for a typical installation with all the recommended
accessories for the pump to operate correctly.
DRUM MOUNTED PUMP
Fig. 3a
WALL MOUNTED PUMP
Fig. 3b
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
NOTE: The compressed air supply must be between 3 and 10 bar (40
– 140 psi), working air 6 bar (90 psi) is the recommended air working
pressure. An air shut-off valve must be installed, in order to close the
compressed air line at the end of the day. (If the air inlet not is closed
and there is a leakage at some point of the oil outlet circuit, the pump
will start automatically, emptying the container).
Pos. Description
Nipple
1
Air hose
2
Quick coupling
3
Connection nipple
4
Pump
5
Outlet hose
6
Wall bracket
7
Nipple
8
Suction hose
9
Valve
10
Nipple
11
Nipple
12
Valve
A
Nipple
B
Filter regulator
C
Valve
D
Safety valve
E
EN
Part No.
945516
246010
253114
259014
353110
362101
360102
945552
362400
950306
945555
945565
Optional
950319
239000
240500
950300
609007
R. 03/18 835 807
3
