INSTALLING THE 2-PIECE LINKAGE

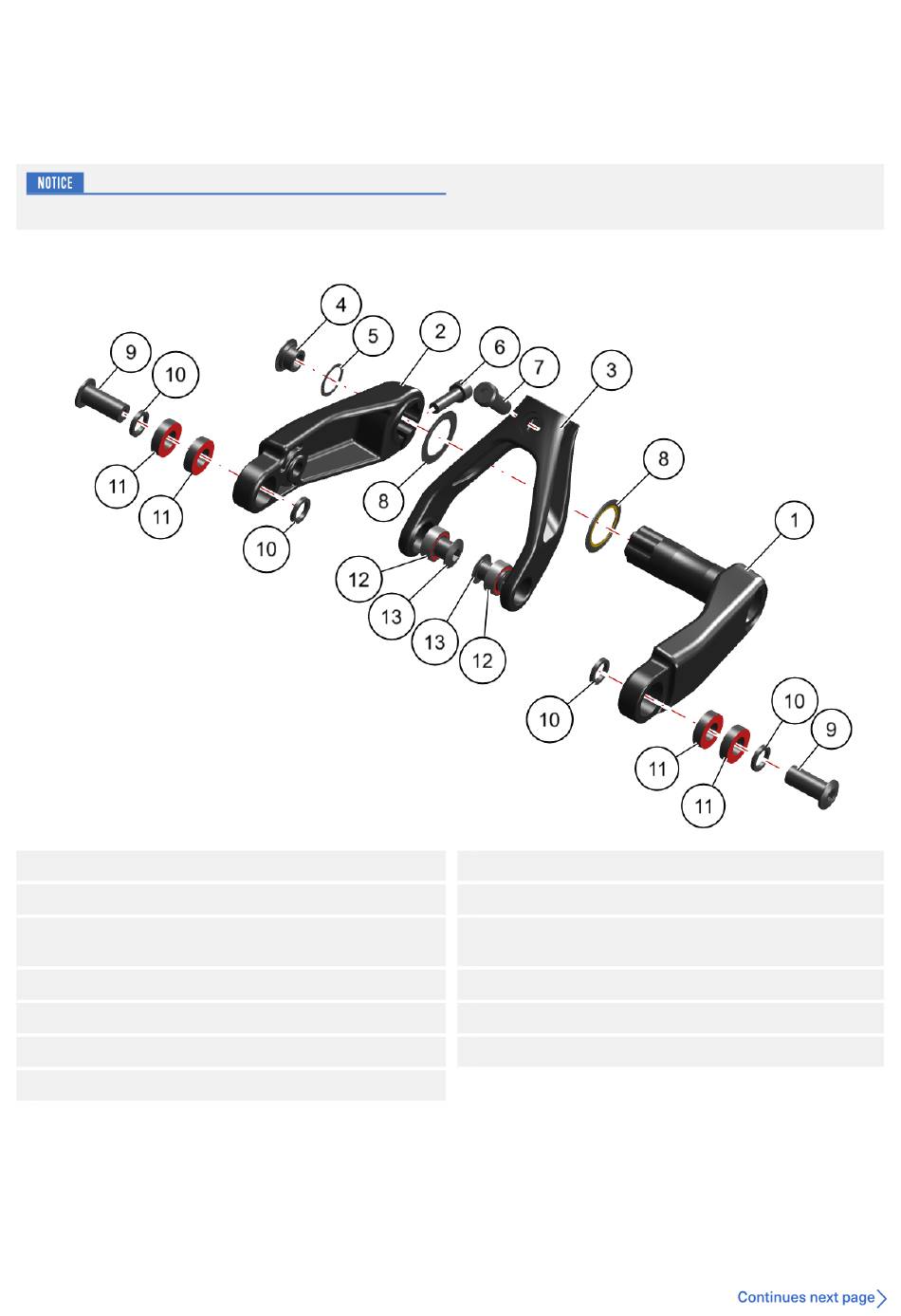

Before installing the 2-piece linkage, check that you have all the necessary parts.
1
Right-hand linkage+shaft assembly
2
Right linkage
3
Shock yoke (specific to the 2-piece linkage)
4
Magnetic linkage pre-load bolt
5
Preload washer 14.5x18x0.5
6
Left linkage pinch bolt M6x16 DIN912
7
M8xP1.0 shock fixing bolt (you can use the original)
RISE 2023 2-PIECE LINKAGE INSTALLATION ON PREVIOUS RISE FRAMES •
8
Dust cover 20x32
9
Seatstay-linkage bolts (you can use the originals)
10
Seatstay-linkage washers 10x14x2 (you can use the
originals)
11
Linkage-seatstay bearing 6800
12
Shock yoke bearings DR 10177
13
Shock yoke-linkage bolts
