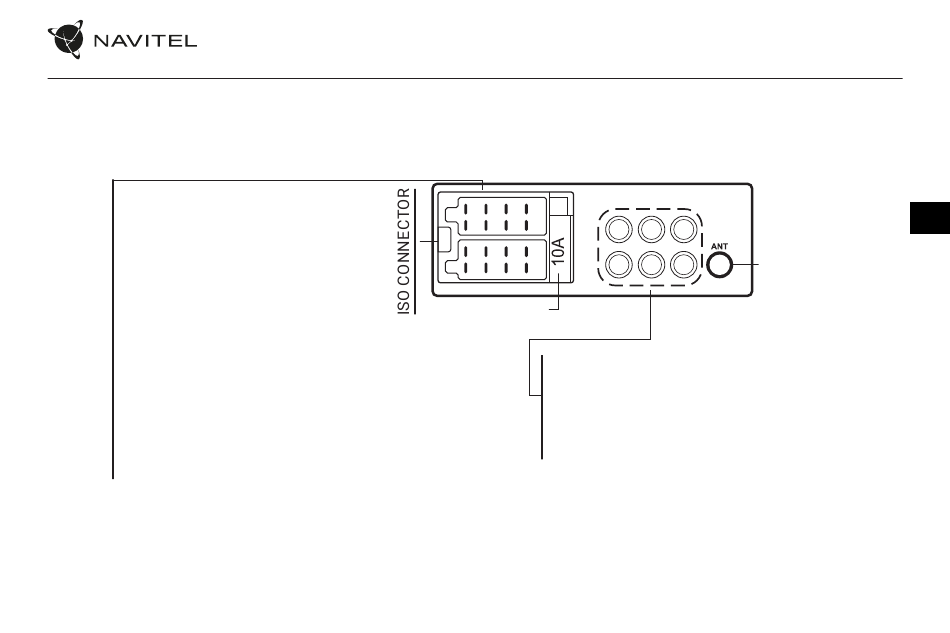

Wiring diagram

It is strongly recommended that works on installing the car radio should be done by qualified personnel with the necessary skills. Make sure these
works are safe in case of self-installation.
1. Rear right speaker (+)
2. Front right speaker (+)
3. Front left speaker (+)
4. Rear left speaker (+)
5. Rear right speaker (-)
6. Front right speaker (-)
7. Front left speaker (-)
8. Rear left speaker (-)
9. Parking sensor
10. Not used
11. Power antenna
12. Ignition/accessory (+12V)
13. Brake line
14. Constatnt power supply (+12V)
15. Not used
16. Ground
1 2 3 4
5 6 7 8
1 3
9 10 11 12
2 4
13 14 15 16
FUSE 10A
1. Left RCA connector
2. Right RCA connector
3. Video output
4. Video output
5. Subwoofer
6. Rear camera
NAVITEL RD9
5
6
FM ANTENNA
