5.3 Sealing
After the scale has been verified, it must be sealed to prevent undetected access to the legally controlled
settings. The sealing is different depends on the base connection method. Refer to the instructions below for an
appropriate sealing method.
5.3.1
Sealing for Base without EasyConnect
If the terminal connects to a base without EasyConnect (refer 2.3.2 Scale Base without EasyConnect
Connector), the scale can be sealed using Wire Sealing (figure 5-1 and 5-3) or Paper Sealing (figure 5-2 and 5-
4).
5.3.2 Sealing for EasyConnect Base with Memory Module
When the i-DT61PW or i-DT61XWE indicator is connected to an OHAUS Defender 6000 series base boasting
EasyConnect
using Wire Sealing (figure 5-1 and 5-3) or Paper Sealing (figure 5-2 and 5-4).
The connection cable does not need hardware sealing because it is sealed by software pairing. Once the
indicator or the base is replaced by a new one, an error message (
displayed window.
Notice: If it uses an external connection such as EasyConnect to connect a base without memory module,
the completed scale CANNOT be used in Legal For Trade because the connection between the indicator and
the base cannot be sealed in physical and software methods.

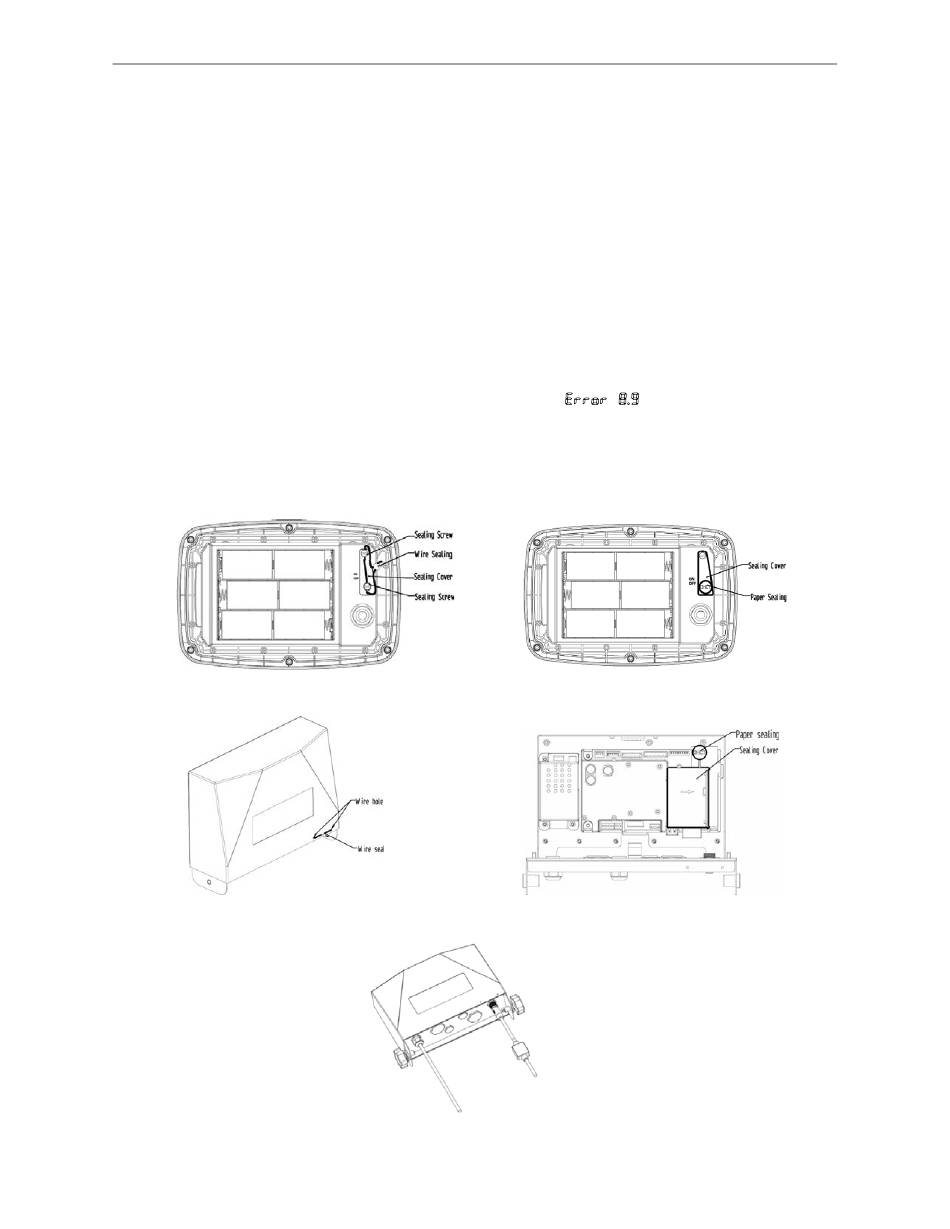

Figure 5-1. i-DT61PW Wire Sealing
Figure 5-3. i-DT61PW Wire Sealing
