DMX512 CONTROL
Via DMX cable
DMX Controller
Program
Chase32 Step100

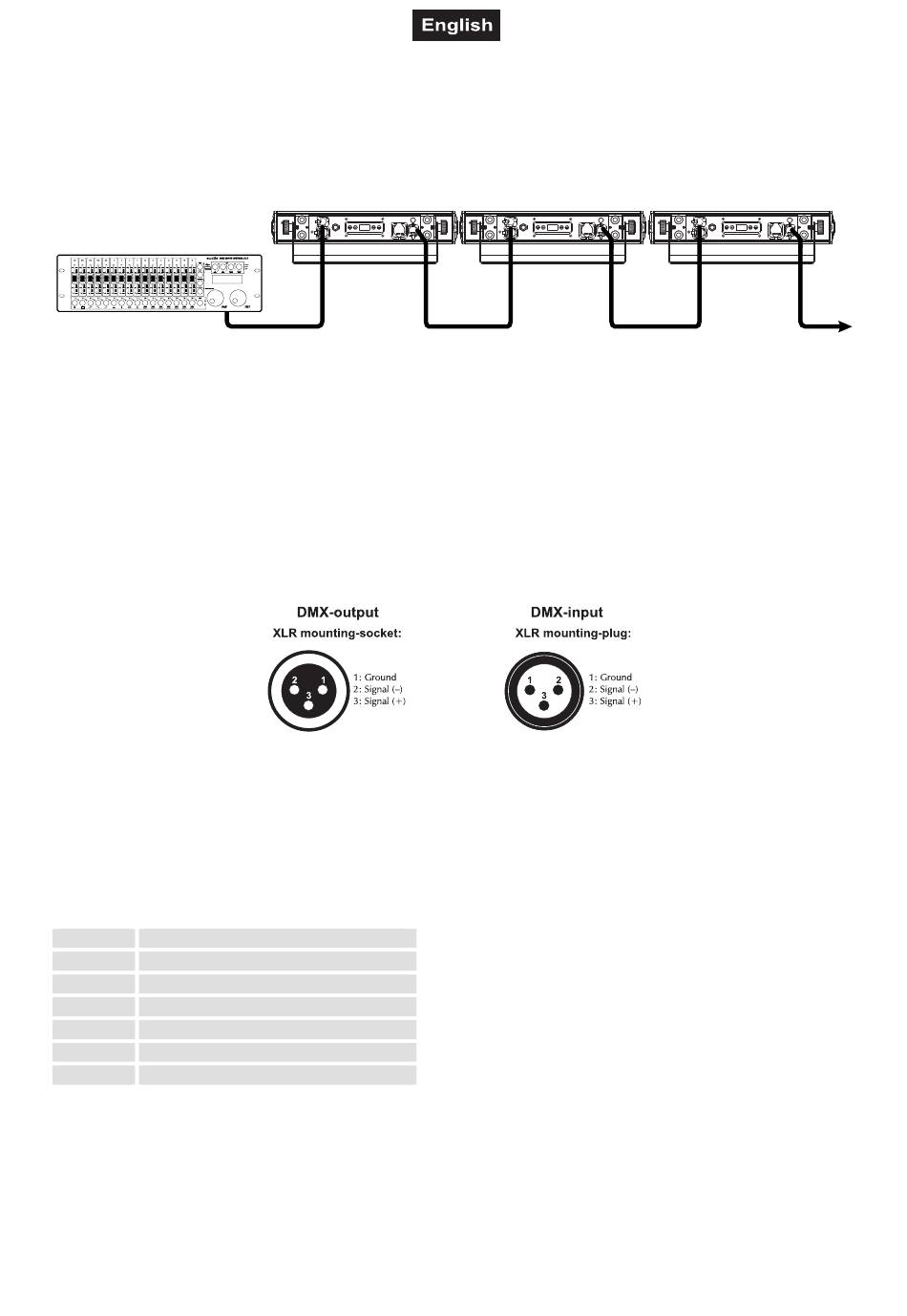

A DMX512 data link is required in order to control the device via DMX. The device provides 3-pin XLR
connectors for DMX connection.
1 Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.
2 Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain. Always
connect one output to the input of the next unit until all units are connected.
3 At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between
Signal (–) and Signal (+) in the DMX output of the last unit.
4 If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended
to insert a DMX level amplifier to ensure proper data transmission.
XLR connection:
Please make sure that open contacts are closed with caps in order to avoid humidity and dirt in the device.
Wireless via QuickDMX
Connect the QuickDMX transmitter to the DMX controller. Put the transmitter and the spotlight into operation
and set them to the same transmission channel. Use menu option SET 2.4G on the spotlight to do this. Now
you can set the desired transmission channel via the display using the UP and DOWN buttons.
Channel Color
1 Red
2 Green
3 Blue
4 R + G
5 G + B
6 R + B
Thus, the wireless DMX network is set up and the spotlight is paired to the QuickDMX transmitter. The
assignment of the spotlight to the transmitter is kept memorized even after disconnecting the power supply.
Device 1
Starting Address 1
MENU UP DOWN ENTER
29/40
Device 2
Starting Address 11
MENU UP DOWN ENTER
Device 3
Starting Address 21
MENU UP DOWN ENTER
