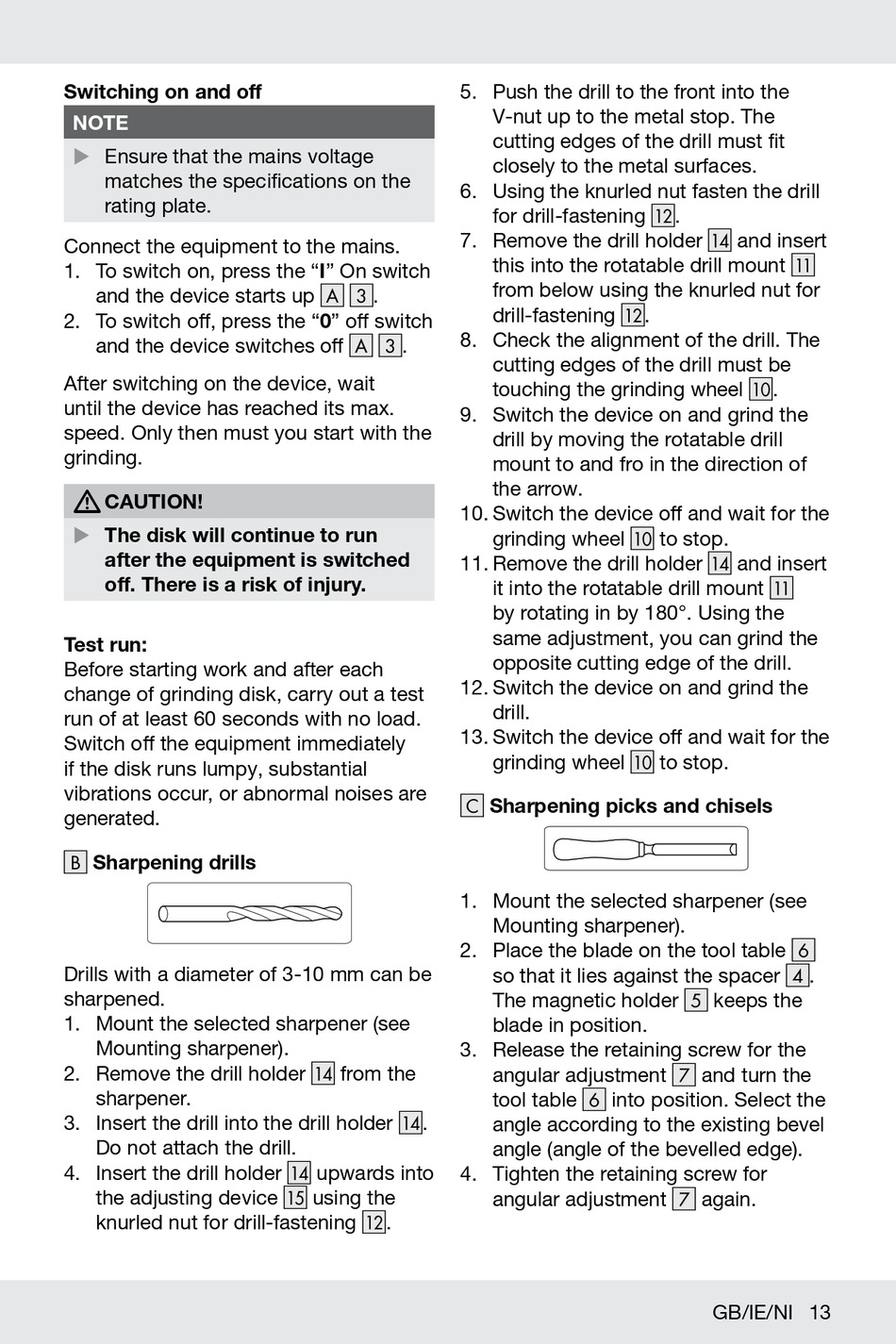

Parkside PSS 65 D1 Bedienungsanleitung Seite 19

Switching on and off
NOTE
Ensure that the mains voltage
u
matches the specifications on the
rating plate.
Connect the equipment to the mains.
1. To switch on, press the "I" On switch
and the device starts up
2. To switch off, press the "0" off switch
and the device switches off
After switching on the device, wait
until the device has reached its max.
speed. Only then must you start with the
grinding.
CAUTION!
m
The disk will continue to run
u
after the equipment is switched
off. There is a risk of injury.
Test run:
Before starting work and after each
change of grinding disk, carry out a test
run of at least 60 seconds with no load.
Switch off the equipment immediately
if the disk runs lumpy, substantial
vibrations occur, or abnormal noises are
generated.
Sharpening drills
[ B ]
Drills with a diameter of 3-10 mm can be
sharpened.
1. Mount the selected sharpener (see
Mounting sharpener).
2. Remove the drill holder
sharpener.
3. Insert the drill into the drill holder
Do not attach the drill.
4. Insert the drill holder
the adjusting device
knurled nut for drill-fastening
.
A ] [ 3 ] [
.
[ A ] [ 3 ]
from the
14 ] [
.
[ 14 ]
upwards into
[ 14 ]
using the
[ 15 ]
.
12 ] [
5. Push the drill to the front into the
V-nut up to the metal stop. The
cutting edges of the drill must fit
closely to the metal surfaces.
6. Using the knurled nut fasten the drill
for drill-fastening
7. Remove the drill holder
this into the rotatable drill mount
from below using the knurled nut for
drill-fastening
12 ] [
8. Check the alignment of the drill. The
cutting edges of the drill must be
touching the grinding wheel
9. Switch the device on and grind the
drill by moving the rotatable drill
mount to and fro in the direction of
the arrow.
10. Switch the device off and wait for the
grinding wheel
11. Remove the drill holder
it into the rotatable drill mount
by rotating in by 180°. Using the
same adjustment, you can grind the
opposite cutting edge of the drill.
12. Switch the device on and grind the
drill.
13. Switch the device off and wait for the
grinding wheel
Sharpening picks and chisels
C ] [
1. Mount the selected sharpener (see
Mounting sharpener).
2. Place the blade on the tool table
so that it lies against the spacer
The magnetic holder
blade in position.
3. Release the retaining screw for the
angular adjustment
tool table into position. Select the
6 ] [
angle according to the existing bevel
angle (angle of the bevelled edge).
4. Tighten the retaining screw for
angular adjustment
.
12 ] [
and insert
14 ] [
[ 11 ]
.
.
[ 10 ]
to stop.
[ 10 ]
and insert
14 ] [
11 ] [
to stop.
10 ] [
6 ] [
[ 4 ]
keeps the
[ 5 ]
and turn the
[ 7 ]
again.
7 ] [
