General system information

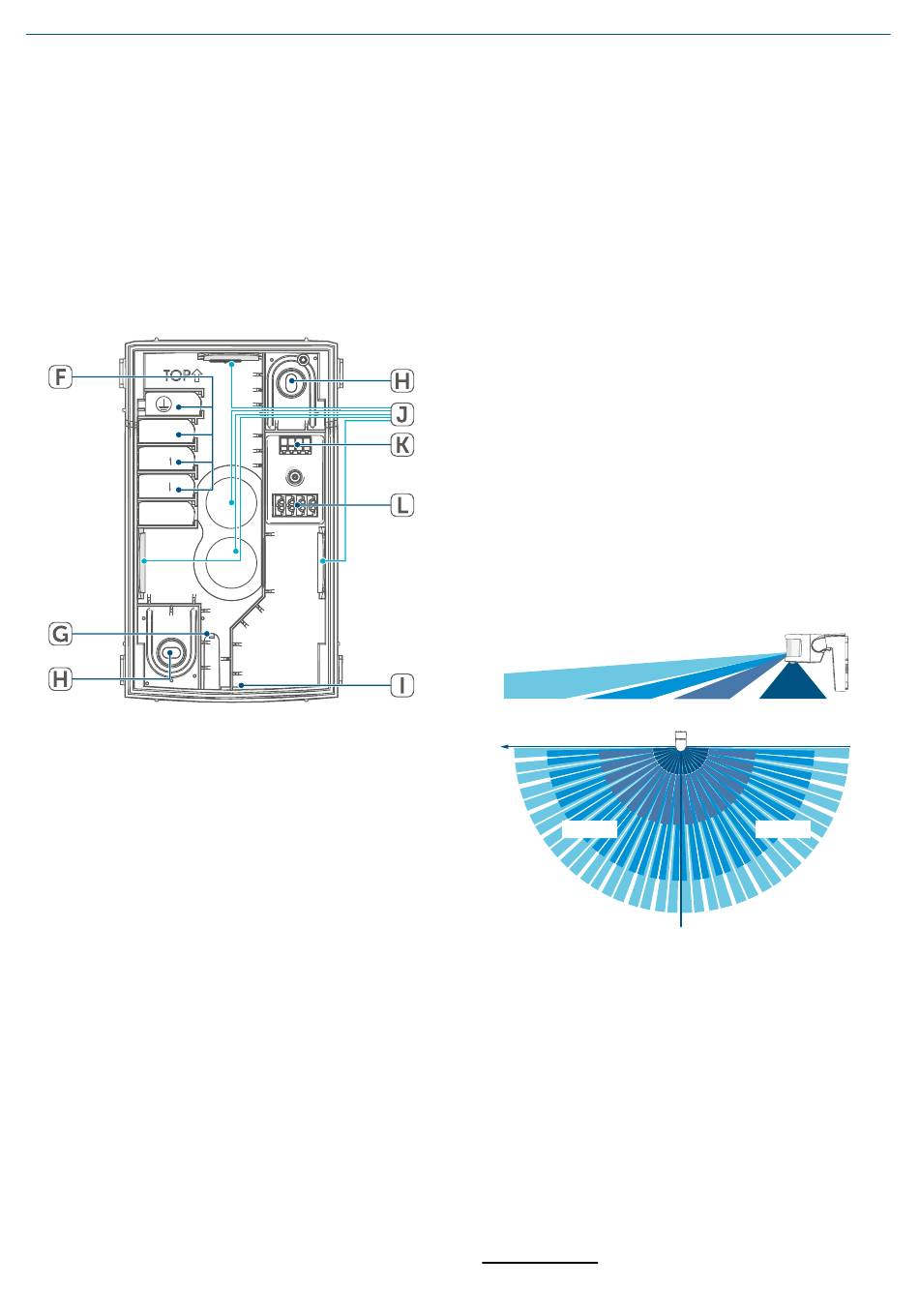

Mounting plate:
©
(F) WAGO
terminals
(G) Pressure equalisation duct
(H) Mounting holes
(I) Breakout opening for draining con-
densation
(J) Cable inlets
(K) Device BUS connection
(L) System BUS connection
N
L
1
Figure 2
5 General system information
This device is part of the Homematic IP
Smart Home system and works with
the Homematic IP protocol. All de-
vices of the system can be configured
comfortably and individually with a
smartphone using the Homematic IP
App. Operation requires connec-
tion to a Homematic IP Wired Access
Point. Detailed information about the
system and combinations with other
Homematic IP Wired and wireless de-
vices can be found in the
ic IP Wired system
est technical documents and updates
can be found at
www.homematic-ip.com.
+
-
A B
+
-
A B
Homemat-
manual. All the lat-
6 Detection range
The wired motion detector with
switching actuator has a detection
range of up to 20 metres
tion angle of 180°. The stepwise tilting
of the lens allows the device to be op-
timally adapted to local conditions.
The motion detector has a total of
three separate motion detection zones
(two main zones and the creep zone).
The large detection angle of 180° in
the main detection range and numer-
ous individual setting options allow
scenarios such as the suppression of
disturbance variables (passers-by, cy-
clists or vehicles) to be implemented.
The division into different zones allows
the range of the other zones to remain
unchanged.
*
20 m
16 m
20 m
16 m
11 m
1,5 m
Zone 1
Figure 3
Individual settings can be selected for
your device using the Homematic IP
App. For details, please refer to the
Homematic IP User Guide, available for
download at www.homematic-ip.com.
*
With an installation height of 2.5 m
and a detec-
*
11 m
1,5 m
180°
Zone 3
Zone 2
