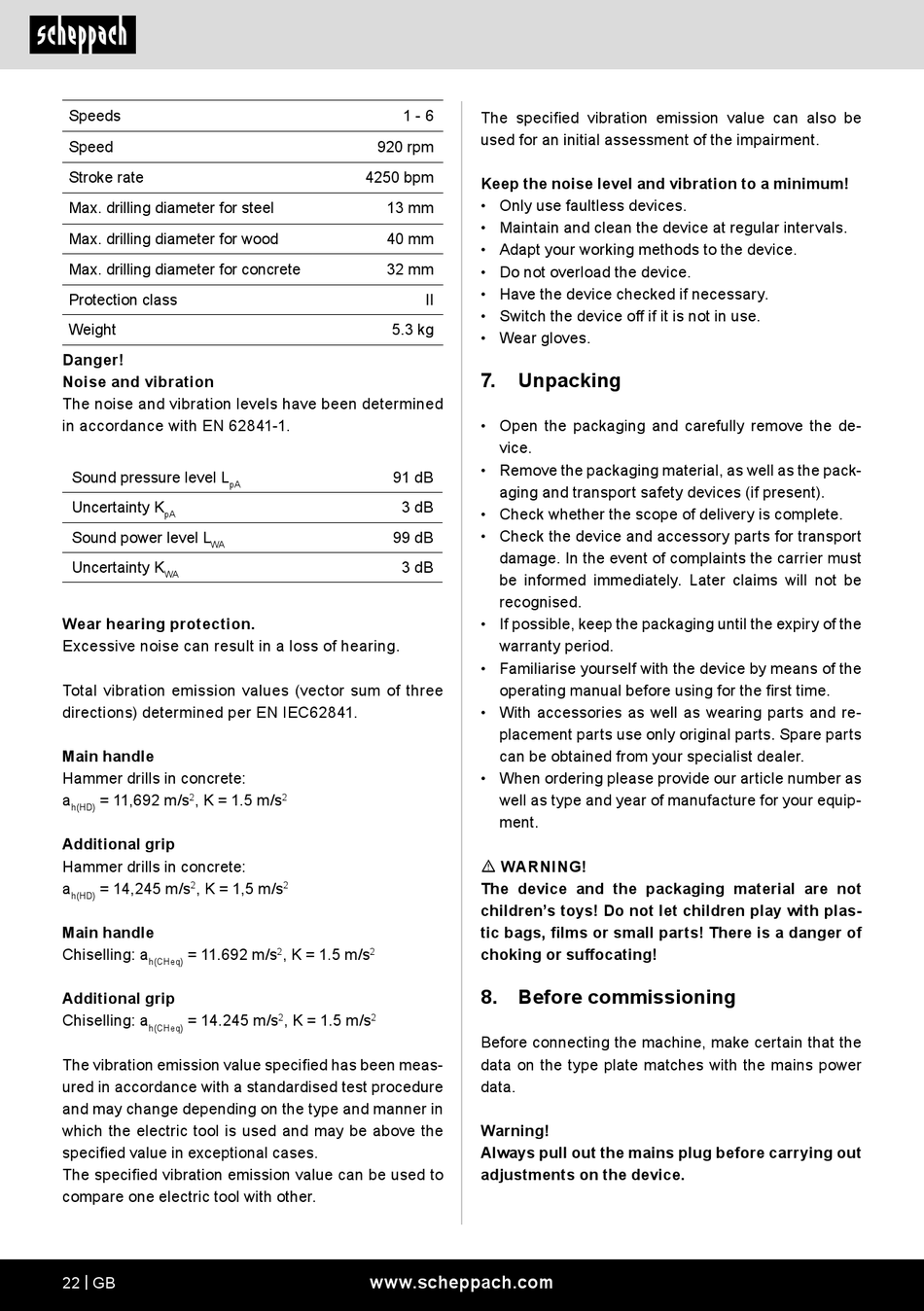

Scheppach DH1500Plus Originalbetriebsanleitung Seite 22

Speeds
Speed
Stroke rate
Max. drilling diameter for steel
Max. drilling diameter for wood
Max. drilling diameter for concrete
Protection class
Weight
Danger!
Noise and vibration
The noise and vibration levels have been determined
in accordance with EN 62841-1.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
Excessive noise can result in a loss of hearing.
Total vibration emission values (vector sum of three
directions) determined per EN IEC62841.
Main handle
Hammer drills in concrete:
a = 11,692 m/s , K = 1.5 m/s
2
h(HD)
Additional grip
Hammer drills in concrete:
a = 14,245 m/s , K = 1,5 m/s
2
h(HD)
Main handle
Chiselling: a = 11.692 m/s
h(CHeq)
Additional grip
Chiselling: a = 14.245 m/s
h(CHeq)
The vibration emission value specified has been meas-
ured in accordance with a standardised test procedure
and may change depending on the type and manner in
which the electric tool is used and may be above the
specified value in exceptional cases.
The specified vibration emission value can be used to
compare one electric tool with other.
22 | GB
1 - 6
920 rpm
4250 bpm
13 mm
40 mm
32 mm
II
5.3 kg
91 dB
3 dB
99 dB
3 dB
2
2
, K = 1.5 m/s
2 2
, K = 1.5 m/s
2 2
www.scheppach.com
The specified vibration emission value can also be
used for an initial assessment of the impairment.
Keep the noise level and vibration to a minimum!
• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.
7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Before commissioning
Before connecting the machine, make certain that the
data on the type plate matches with the mains power
data.
Warning!
Always pull out the mains plug before carrying out
adjustments on the device.
