QS1
Z1, Filter
3p
X1
Mains
switch
F4-F6
Main Supply in
3x200-240V or
3x380-480V,
50/60 Hz
A3
Powersupply
24Vdc / 5A
GND
24V
24V-1
S1,
Emergency
Stop
S1-1
24V-S2
SS1,
Work Zone Guard
Interlock
A2
A1
KS1,
Safety relay
RESET
A2
Display
SB1
Touch Pad
BR1,
Turn/Push button
F1-F3
K1, Contactor
FT1
(X4)
1x outputs
(X1)
24V-1 (unswitched)
(X2)
24V-1
(X14) Input
E-STOP status
S1-2
S1-3
(X2)
24V-2
YS1,
Work Zone Guard
Interlock
(X4)
1x outputs
(X14)
Input
Safety relay status
24V-S3
24V-S4
(X9)
12V PWM
TFT Color Display,
320x240 dots
with white LED
backlight
Parallel
(X23)
Epson
S1D13706
(X12)
6x4 Matrix (6 out / 4 in)
(X19)
5V, 2+1 dig.input
A5, Frequency Converter
- 5,5kW
A4, Frequency Converter
- 750W
X20, Connector for
Recirkulation pump
24V-S2
(X8)
CAN
A1, Printed Circuit Board
Multi Purpose PCB
CPU, V850SJ3, 1M flash, 60K ram
SRAM, 256Kx16
NVRAM, serial 32Kx8
Display Controler, S1D13706
Real time clock
Heart beat Indicatot
PCB-version detection
Buzzer
6x voltage supervision, 10bits ADC
3x SPI
Connector for
Struers Memory
Module
(X20)
Connector for
Connector for
Debug / Test
Initial prog.
(X22)
(X21)
4x outputs
24V Output
RS232
+24V
(X16)
(X3)
(X16)
X2, Auxilliary
X4, Connector
X3, Connector for
Connector
Beacon
for LAN
+150°C Thermal switch, NC
3~
4kW
Belt gearing
4-pole
1:1
Safe Torque
24V-S4
Off function
M2, AC-motor
for stone
+155°C Thermal switch, NC
Gear
Specimen mover head
3~
1700:169
180 RPM, CCW
370W
4-pole
Safe Torque
24V-S4
Off function
M1, AC-gearmotor
for specimen mover
24V-S3
24V-S3
CAN (X8)
Input
(X14)
Analog input
(X11)
12 bit res.
BP1
P
U
2x analog input
(X11)
12 bit res.
1x outputs
(X3)
1x outputs
(X3)
1x outputs
(X3)
1x outputs
(X3)
analog input
(X11)
12 bit res.
analog input
(X10)
12 bit res.
USB
(X15)
Rev.C: 2017.05.01 AKR
Changes to the safety system
X5, Connector
for Service
Thursday, May 04, 2017
Thursday, May 04, 2017
Thursday, May 04, 2017
Stone
1450 RPM, CCW
HQ1, Speed sensor
M3, Dresser sweep
HQ2, Ref. pos. sensor
SMU
M4, Dresser feed
HQ3, Ref. pos. sensor
SMU
Reed switch,
B1
Head in top position
Stock Removal
RP1
linear potentiometer
50 mm stroke
BP2
P
Air Pressure
Transmitters
U
Y1,
Upper air in
Y2,
Upper air out
Solenoid Valves
for air
Y3,
Upper air out fast
Y4,
Reduced lower air
BF1
Flow sensor for
U
grinding water
F
HA1
Accellerometer
U
A
Struers ApS
Struers ApS
Struers ApS
Pederstrupvej 84
Pederstrupvej 84
Pederstrupvej 84
DK-2750 Ballerup
DK-2750 Ballerup
DK-2750 Ballerup
Denmark
Denmark
Denmark
telephone: +45 44 600 800
telephone: +45 44 600 800
telephone: +45 44 600 800

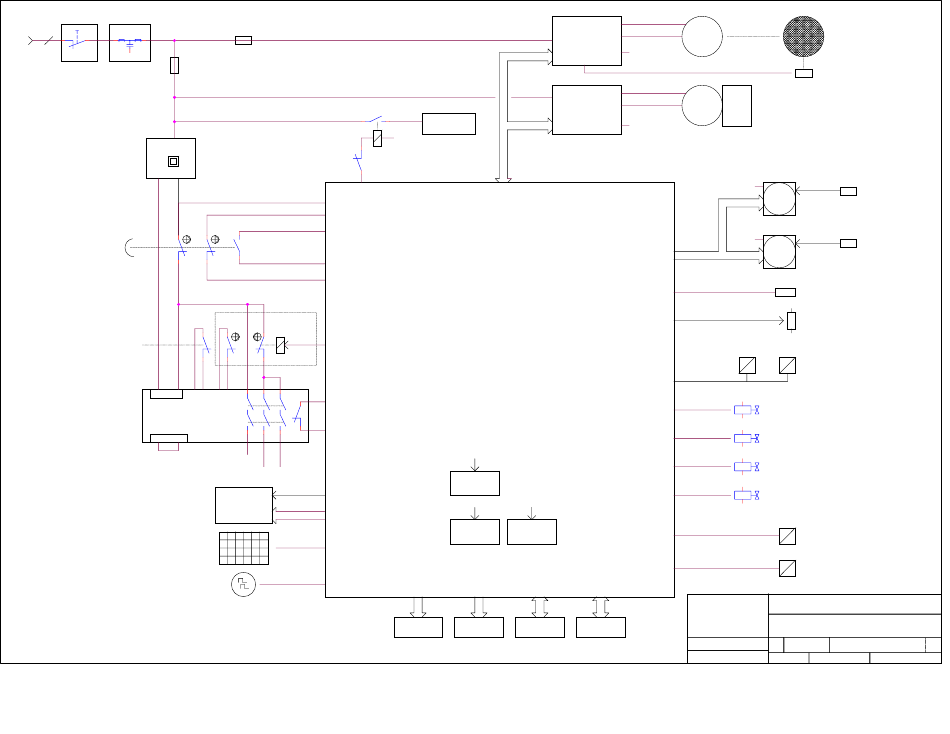

AbraPlan-30, Block Diagram
AbraPlan-30, Block Diagram
AbraPlan-30, Block Diagram
Size
Size
Size
CAGE Code
CAGE Code
CAGE Code
DWG NO
DWG NO
DWG NO
Rev
Rev
Rev
16293050
16293050
16293050
C
A2
A2
A2
Scale
Scale
Scale
Sheet
Sheet
Sheet
1
1
1
of
of
of
1
1
1
AKR/AKR
