Description illustration D
The illustrations shows you in the correct following
order how to assembly your trainer best.
‼
NOTE
• Part numbers shown in the assembly steps
are commencing with the spare part drawing
that can be found in the online full version
user manual.
⚠
WARNING
• Assemble the equipment in the given order.
• Carry and move the equipment with at least
two persons.
⚠
CAUTION
• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to
prevent damage to the floor surface.
• Allow at least 60 cm of clearance around the
equipment.
• Refer to the illustrations for the correct
assembly of the equipment.
Additional assembly information

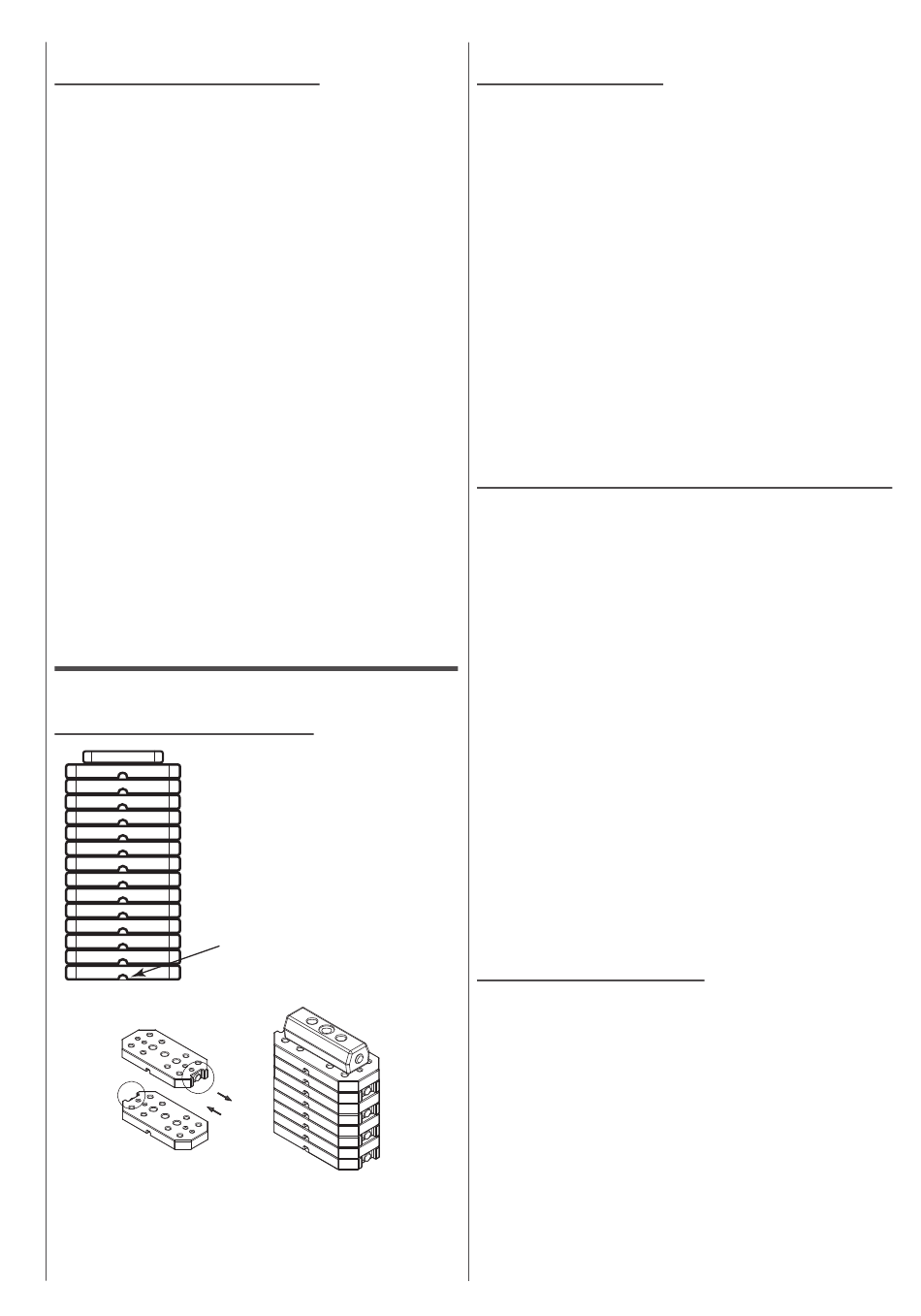

Weight plate installation
Deep Groove
Slide weight plates onto
Guide Rod from top to
bottom.
The deep groove on
each weight plate
needs to face front and
downwards.
Cable installation
Before installing the cables it is
⚠
Important:
- To de-tangle the cables fully.
- To avoid the cable from twisting during
transiting over the pulley wheels.
⚠
WARNING
• A twisted cable in the installation can result
in separating the outer protective plastic
coating from the inner steel cable.
• A twisted cable in the installation can result in
the cables to entangle or mall malfunctioning
of the weight plates return.
Fixing cable onto Selector Shaft (Fig� D-8)
Before fixing the cable onto the selector shaft, all
cables should be routed throughout the station
first.
The locking nut must be turned up fully as well.
- Fit the threaded cable end into the selector
shaft by turning it in clockwise direction as far
as possible.
- Secure the fixation by turning the locking nut in
clockwise direction firmly.
⚠
WARNING
• All cables with threaded adjustable ends
must have at least 1/2" of the treads
threaded in to its counter part. It is very
important that the jam nut be wrenched
tightened to the counter part to ensure that
the threaded adjustable end of the cable
does not back out of its counterpart.
Correct cable tension
The correct cable tension is where the weight
stack returns smoothly, keeping a loose cable
tension when weight stack is in rest position.
There should be hardly a non tension moment
when starting a workout using the weight stack as
load.
‼
NOTE
• When weight selector pin can not smoothly
fix the required weight load because selector
shaft is slightly lifted when selector pin is out,
the cable tension should be loosened.
