3.4 Motor Feedback System with Tapered Shaft and Spring Mounting Support
3.4.1 Disassembly
8013452/1PPY/2024-10-16 | SICK
Subject to change without notice
7
5
12
9
13
11

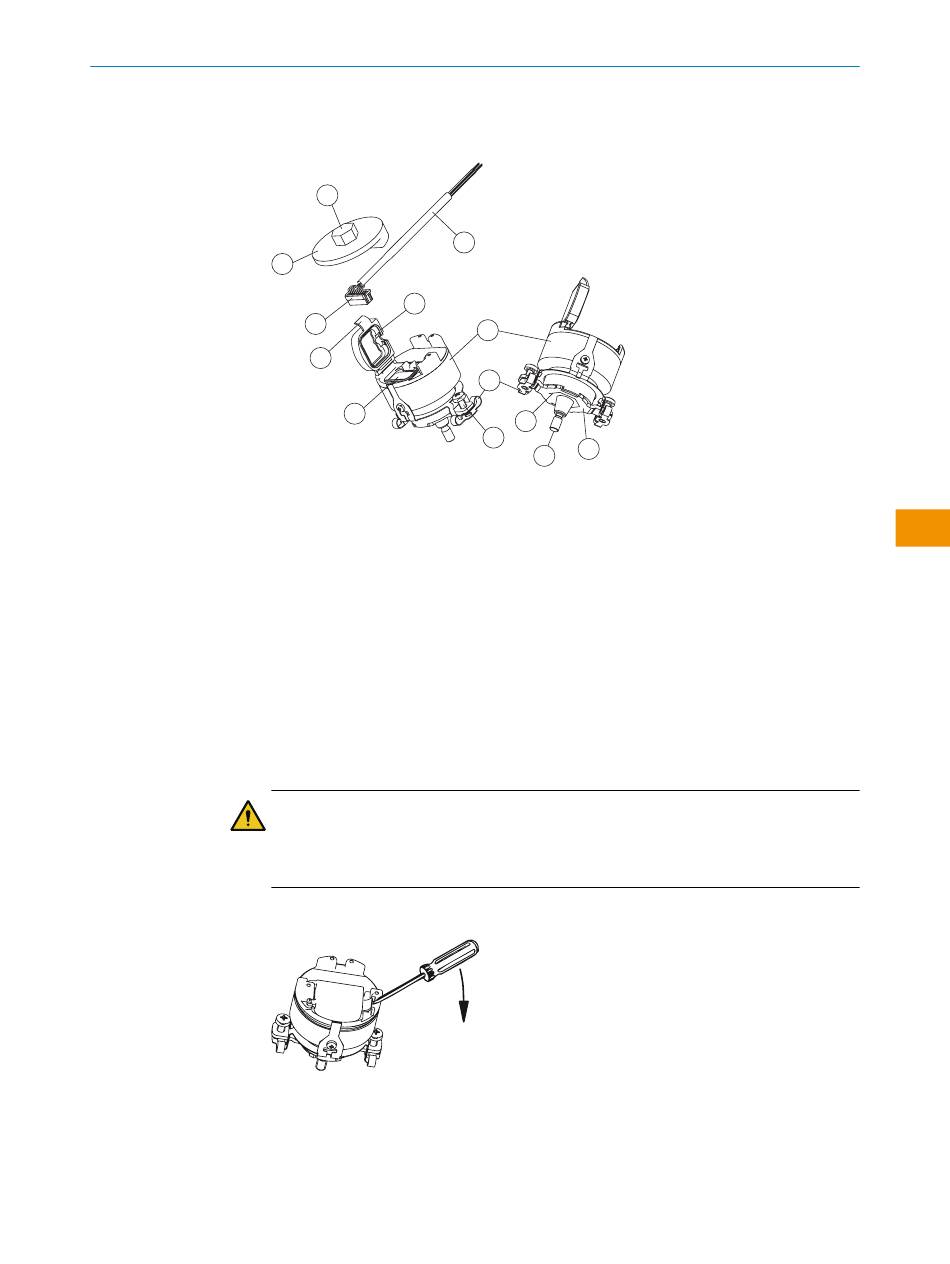

Figure 1: Motor feedback system with tapered shaft and spring mounting support
Block customer's drive shaft to prevent rotation.
►
The hexagonal part (1) of the motor feedback system shaft (2) must be engaged in
►
the recess of the fixing plate (3) of the torque support (4).
Place the assembly tool (5) on the back of the motor feedback system and engage
►
on the cut-outs of the motor feedback system housing (6).
Using the hexagonal part (7) of the assembly tool (5), screw the motor feedback
►
system into the drive shaft.
Screws (8) must not hook into the fixing holes of the motor.
►
Tightening torque: 4 Nm + 0.8 Nm.
►
Release the drive shaft and rotate the motor feedback system until the holes in
►
the fixing plate (3) are positioned over the fixing holes of the motor flange.
Alternately tighten the fixing plate (3) with 2 M3 screws (8) on the motor flange
►
(see "Required Tools", page
WARNING
• The internal thread in the motor shaft must be free from burrs and dirt.
• The taper must be free of dirt and grease.
• Max. torque for the thread, before the taper is seated: 0.8 Nm.
Figure 2: Disassembly SKS/SKM36
Block customer's drive shaft to prevent rotation.
►
If neccessary please open the cover (12) with a screwdriver
►
Remove the connector fitted with the set of strands (9+10) volt-free.
►
Remove the 2 M3 screws (8).
►
10
6
4
1
8
3
2
14). This releases the motor feedback system shaft.
O P E R A T I N G I N S T R U C T I O N S | SKS/SKM36
OPERATING INSTRUCTIONS
see figure 2.
