A
M
B
 Open the window.
 Mark the centre (M) of the textile window seal.
 Mark the centre of the window frame.
 Adhere the hook and loop fastener to the window frame of the bottom-hung
window (inside, on the side where the window handle is located), about 1 cm
from the edge.
 First, attach the hook and loop fastener completely on side (A) and then on side
(B), starting in the centre. When mounting, point (A) must be exactly opposite
point (B).
 When closing the window, care must be taken to ensure that the textile seal be-
tween the sash and the window frame is not jammed.
 Preferably open the zip at the places marked "S" and attach the exhaust air hose
there.
 Route the exhaust air hose as straight as possible.
 Do not bend the exhaust air hose.
212

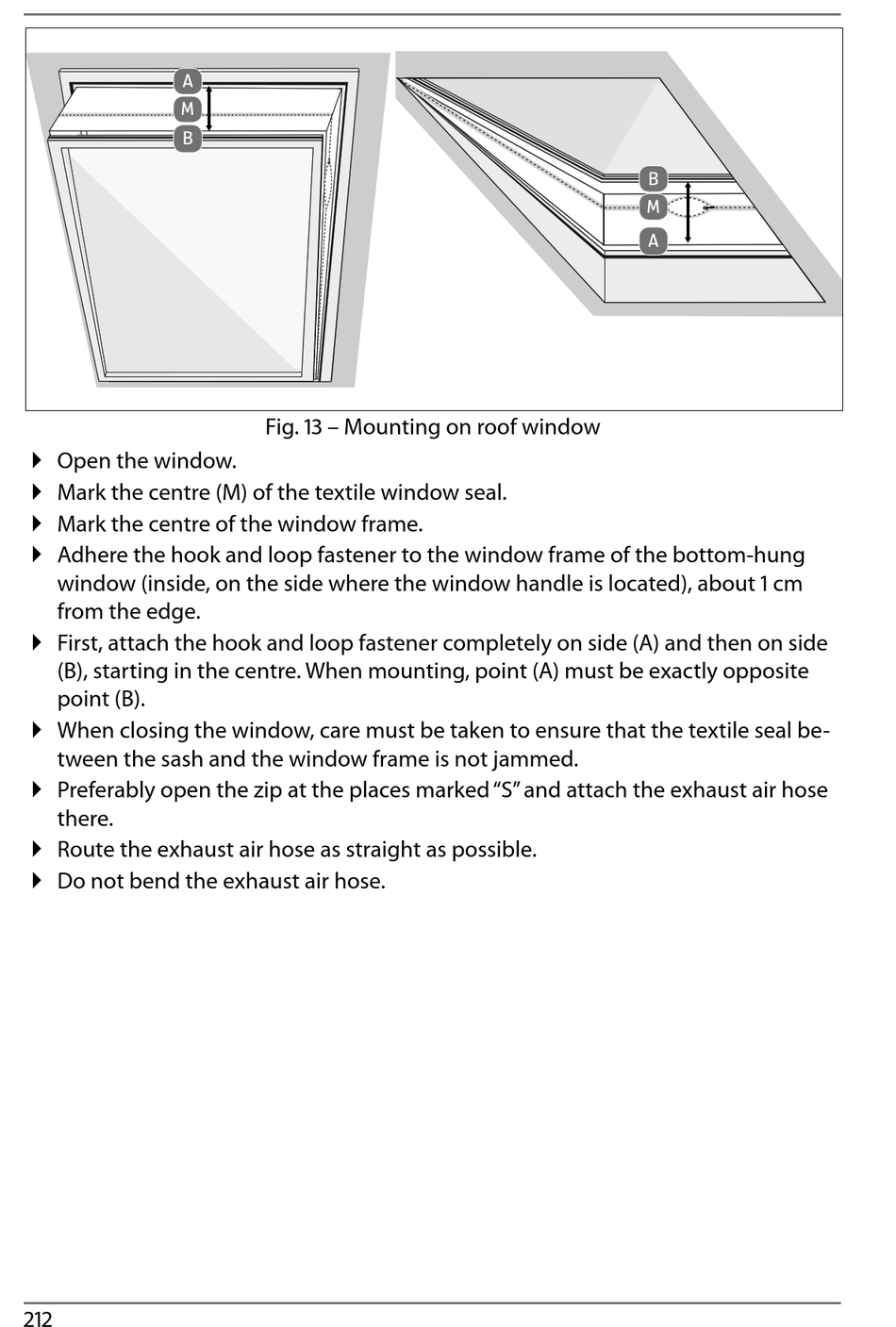

Fig. 13 – Mounting on roof window
B
M
A
