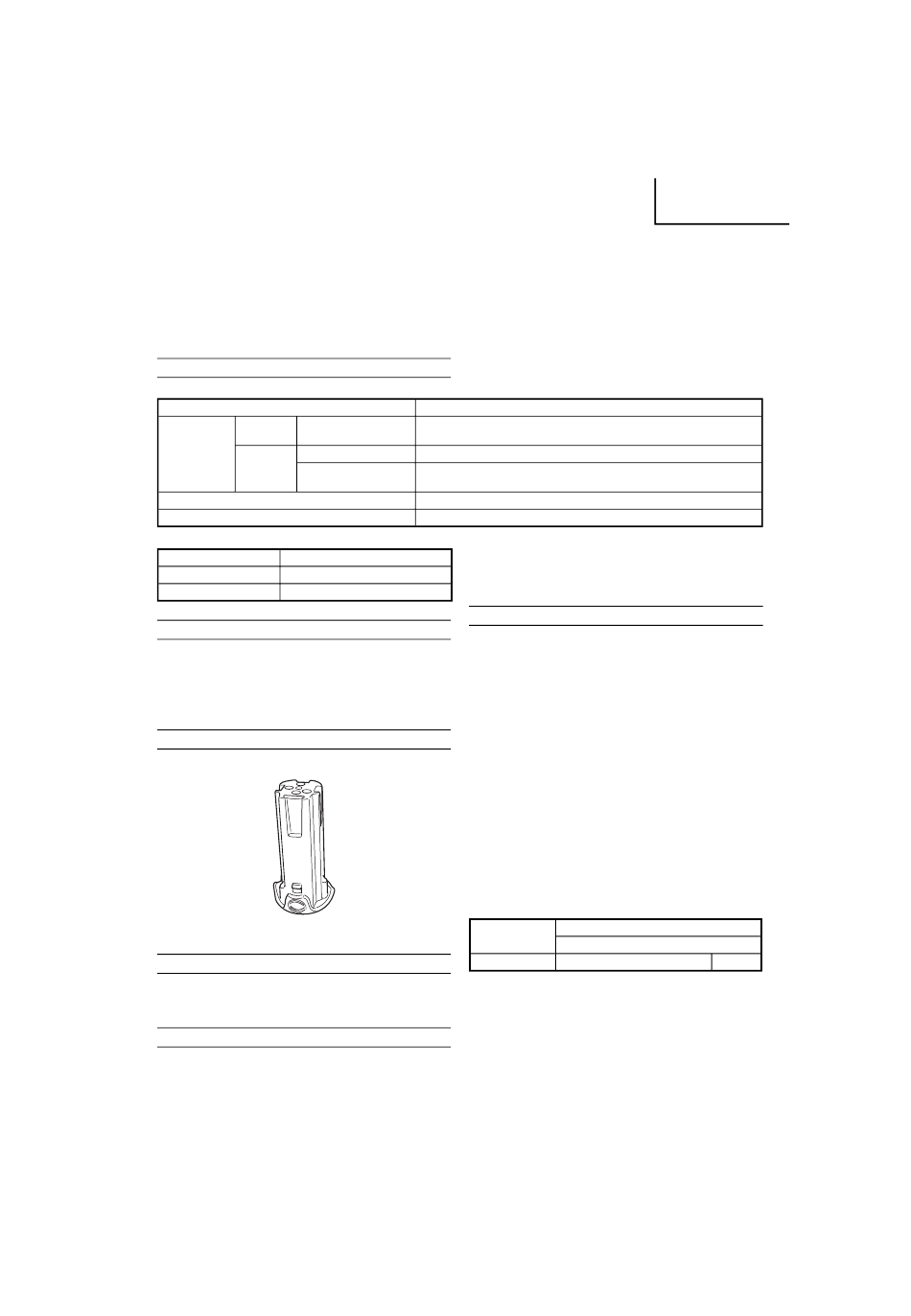

3. If you fi nd rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using the
battery for the fi rst time, do not use and return it to your
supplier or vendor.
SPECIFICATIONS
POWER TOOL
No-load speed (Low/High)
Metal
Drilling
(Thickness 1.0 mm)
Capacity Machine screw
Driving
Wood screw
Rechargeable battery
Weight
CHARGER
Model
Charging voltage
Weight
STANDARD ACCESSORIES
Plus driver bit (No. 2 × 50L) ..........................................1
✶
Battery (EBM315) .........................................................1
✷
Charger (UC3SFL) .......................................................1
✸
Plastic case ..................................................................1
✹
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery (EBM315)
Optional accessories are subject to change without notice.
APPLICATIONS
Driving and removing of machine screws, wood
✂
screws, tapping screws, etc.
Drilling of various metals
✂
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery release
buttons (2 pcs.) to remove the battery (see Figs. 1 and
2).
WARNING
If an electrically conductive foreign object enters the
terminals of the lithium ion battery, a short-circuit may
occur resulting in the risk of fi re. Please observe the
following matters when storing the battery.
Do not place electrically conductive cuttings,
✂
nails, steel wire, copper wire or other wire in the
storage case.
3.8 mm (diameter) × 38 mm (length)
EBM315: Li-ion 3.6 V (1.5 Ah 1 cell)
CAUTION
Never short-circuit the battery.
UC3SFL
2. Battery installation
3.6 V
Insert the battery while observing its polarities (see
Fig. 2).
0.3 kg
CHARGING
Before using the driver drill, charge the battery as follows.
1. Connect the charger's power cord to a receptacle.
2. Insert the battery into the charger.
Firmly insert the battery into the charger till it contacts
the bottom of the charger and checking the polarities
as shown in Fig. 3.
Inserting the battery will turn on the charger (the pilot
lamp lights up).
CAUTION
If the pilot lamp does not light up, pull out the power
cord from the receptacle and check the battery
mounting condition.
The pilot lamp goes o
fully charged.
CAUTION
If the battery is heated due to direct sunlight, etc.,
just after operation, the charger pilot lamp may not
light. At that time cool the battery fi rst, then start
charging.
Regarding recharging time
✂
Table 1 shows the recharging time required according
to the type of battery.
Table 1 Recharging time (approx. min.) at 20°C
Battery
voltage (V)
3.6 V
NOTE
The recharging time may vary according to the ambient
temperature.
3. Disconnect the charger's power cord from the
receptacle.
4. Hold the charger fi rmly and pull out the battery.
NOTE
After operation, pull out batteries from the charger fi rst,
and then store the batteries properly.
English
200 / 600 min –1
Steel: 5 mm
Aluminum: 5 mm
5 mm
(Requires a pilot hole)
0.45 kg
to indicate that the battery is
✁
Battery capacity (Ah)
1.5 Ah
EBM315 30 min.
