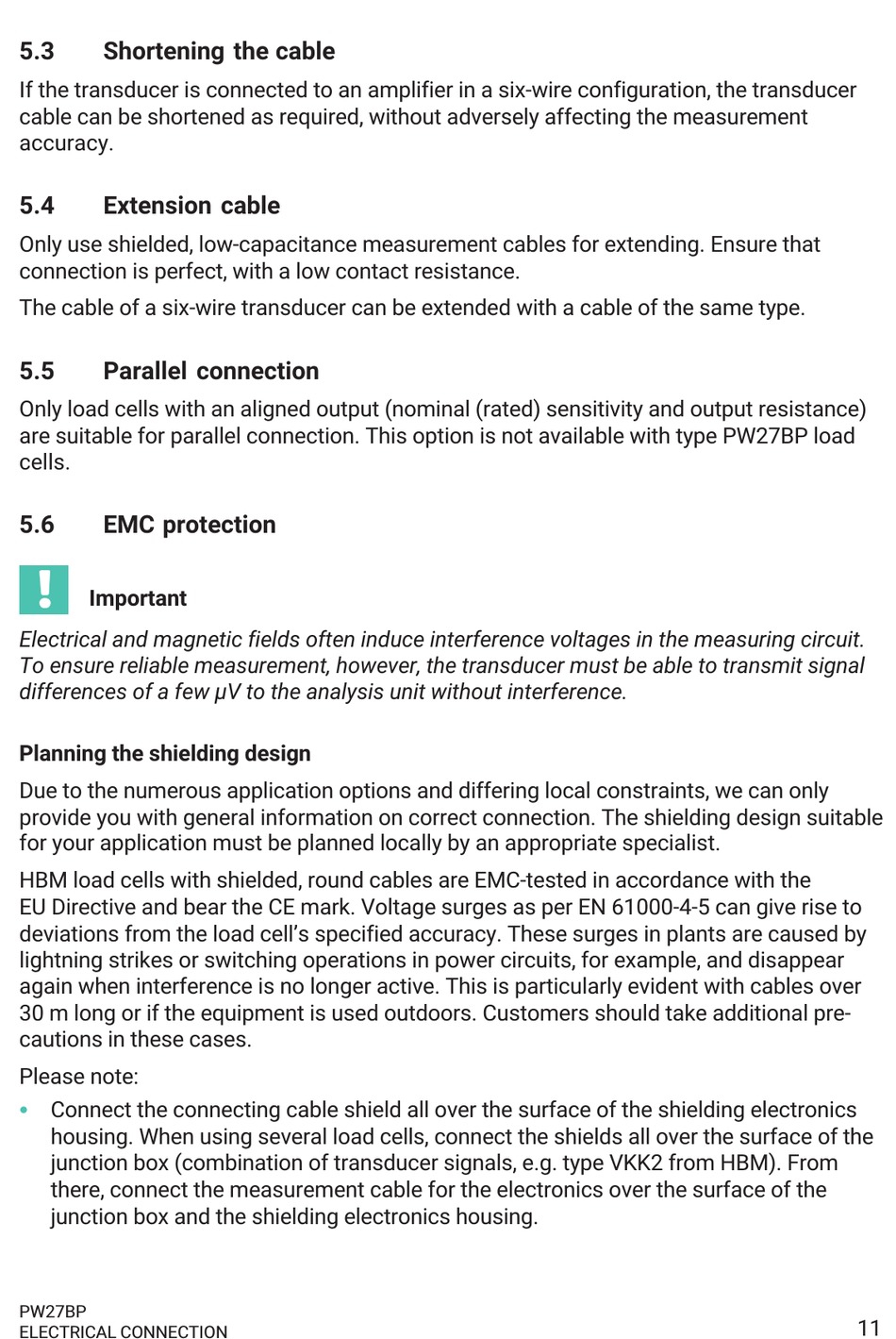

5.3

Shortening the cable

If the transducer is connected to an amplifier in a six‐wire configuration, the transducer
cable can be shortened as required, without adversely affecting the measurement
accuracy.
5.4

Extension cable

Only use shielded, low‐capacitance measurement cables for extending. Ensure that
connection is perfect, with a low contact resistance.
The cable of a six‐wire transducer can be extended with a cable of the same type.
5.5

Parallel connection

Only load cells with an aligned output (nominal (rated) sensitivity and output resistance)
are suitable for parallel connection. This option is not available with type PW27BP load
cells.
5.6

EMC protection

Important
Electrical and magnetic fields often induce interference voltages in the measuring circuit.
To ensure reliable measurement, however, the transducer must be able to transmit signal
differences of a few μV to the analysis unit without interference.
Planning the shielding design
Due to the numerous application options and differing local constraints, we can only
provide you with general information on correct connection. The shielding design suitable
for your application must be planned locally by an appropriate specialist.
HBM load cells with shielded, round cables are EMC-tested in accordance with the
EU Directive and bear the CE mark. Voltage surges as per EN 61000-4-5 can give rise to
deviations from the load cell's specified accuracy. These surges in plants are caused by
lightning strikes or switching operations in power circuits, for example, and disappear
again when interference is no longer active. This is particularly evident with cables over
30 m long or if the equipment is used outdoors. Customers should take additional pre­
cautions in these cases.
Please note:
S
Connect the connecting cable shield all over the surface of the shielding electronics
housing. When using several load cells, connect the shields all over the surface of the
junction box (combination of transducer signals, e.g. type VKK2 from HBM). From
there, connect the measurement cable for the electronics over the surface of the
junction box and the shielding electronics housing.
