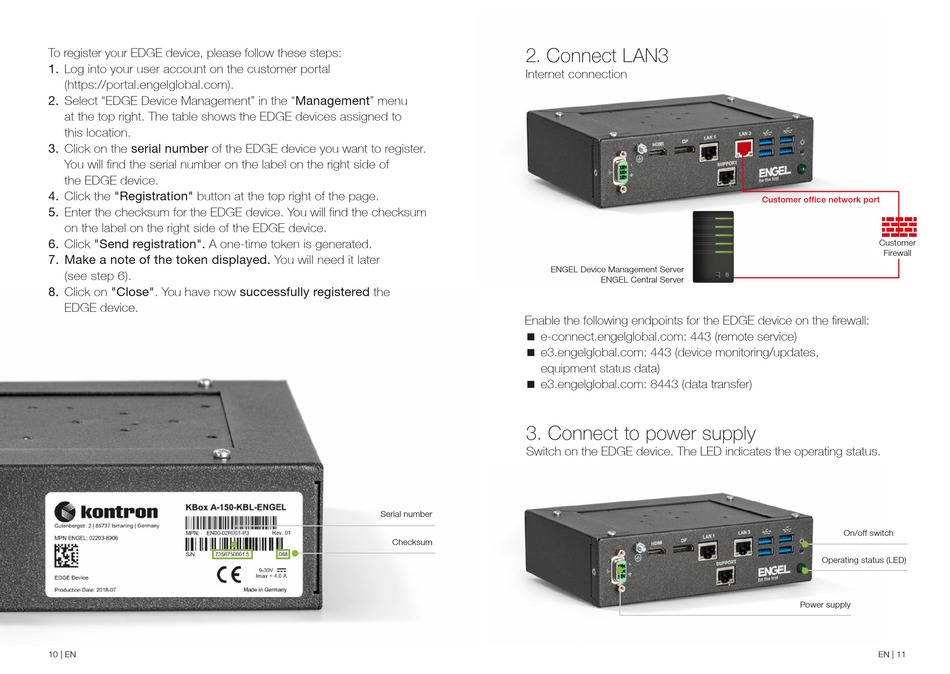

To register your EDGE device, please follow these steps:
1. Log into your user account on the customer portal
(https://portal.engelglobal.com).
2. Select "EDGE Device Management" in the "Management" menu
at the top right. The table shows the EDGE devices assigned to
this location.
3. Click on the serial number of the EDGE device you want to register.
You will find the serial number on the label on the right side of
the EDGE device.
4. Click the "Registration" button at the top right of the page.
5. Enter the checksum for the EDGE device. You will find the checksum
on the label on the right side of the EDGE device.
6. Click "Send registration". A one-time token is generated.
7. Make a note of the token displayed. You will need it later
(see step 6).
8. Click on "Close". You have now successfully registered the
EDGE device.
10 | EN
2. Connect LAN3
Internet connection
ENGEL Device Management Server
Enable the following endpoints for the EDGE device on the firewall:
 e-connect.engelglobal.com: 443 (remote service)
 e3.engelglobal.com: 443 (device monitoring/updates,
equipment status data)
 e3.engelglobal.com: 8443 (data transfer)

3. Connect to power supply

Switch on the EDGE device. The LED indicates the operating status.
Serial number
Checksum
Customer office network port
ENGEL Central Server
Customer
Firewall
On/off switch
Operating status (LED)
Power supply
EN | 11
