Specifications
Connection voltage: 220-240VAC 50Hz
Dimming technology: Triac and Tronic (R, L, C)
Dimmable LED lamps: 2x 100W (R,L,C) LED per group
Lamps with electronic transformers: 100W max. per group
Halogen and incandescent lamps: 100W max. per group
• Suitable for both retrofit lamp bulbs and new installations.
• Two-wire connection - no neutral wire required.
• Soft start system for longer LED lamp life.
• Built-in protection for temperature protection and overload.
Suitable cover plate brands
• Berker by Hager
• Busch-Jaeger
• GIRA
* Suitable for all brands of duo cover material with D-shaped hole. If existing cover material
does not have a D-shaped hole, EcoDim also offers dimmer knobs (incl. central plate & cover
material) which fit into existing multiple frames.

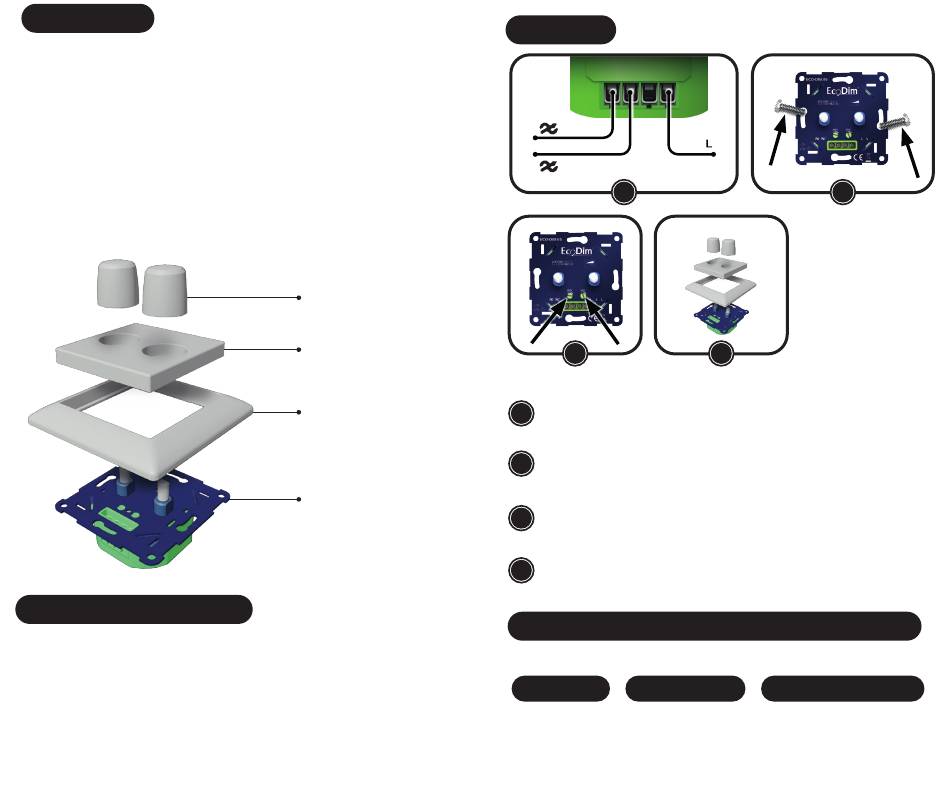

Dimmer knob
Central plate
Cover frame
Dimmer
• JUNG
• Merten by Schneider
• PEHA
Installation
1
2
1
3
Step 1
1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram.
2
Step 2
Now install the dimmer in the flush-mounting box.
Step 3
3
Switch the electricity on again. Turn on the connected lamps using the dimmer shaft.
Now set the MIN as indicated under 'Setting min. light level' .
Step 4
4
Replace the cover frame, the central plate and the 2 dimmer buttons on the dimmer.
Reduction of connection capacity by PowerFactor
When calculating the LED connection power of the dimmer, take into account the PowerFactor
of the dimmable LED lighting. See the global calculation below for this.
NUMBER OF LED LIGHT
=
NOMINAL POWER
SOURCES
Example: 10 lamps * (5W per lamp / 0.8 PowerFactor) = 62.5 Watt
Simplified EU Declaration of Conformity:
We, EcoDim B.V., hereby declare that this product conforms to the directives applicable from the
European Union.
The full text of the EU declaration of conformity can be consulted at the following
internet address: https://www.ecodim.nl/en/service/ecodim-certificering
2
4
NOMINAL POWER LED /
*
POWERFACTOR.
