Water Sensor
Art.no 36-5748 Model DSB45
Please read the entire instruction manual before using the product and
then save it for future reference. We reserve the right for any errors in
text or images and any necessary changes made to technical data.
In the event of technical problems or other queries, please contact our
Customer Services.
For more information please visit www.aeotec.com
instruction manual.
Things to consider:
• Other wireless equipment using the same frequency band can
reduce the transmission range.
• The range of all wireless equipment depends on the type of
obstacles located between the transmitter and the receiver
(e.g. a concrete wall will interfere with the signal more than
a plasterboard wall).
If you experience problems, try the following:
• Turn off any other existing wireless equipment to check whether
this is the cause of the problem.
• Reposition the wireless equipment, shorten the distance between
the transmitter and the receiver or reduce the number of obstacles
(walls, furniture, etc.) between them.
Safety
• Never subject the sensor to high temperature, dust, heavy
vibration, impacts, humidity or moisture.
• Never attempt to dismantle or modify the sensor as it contains no
user-serviceable parts.

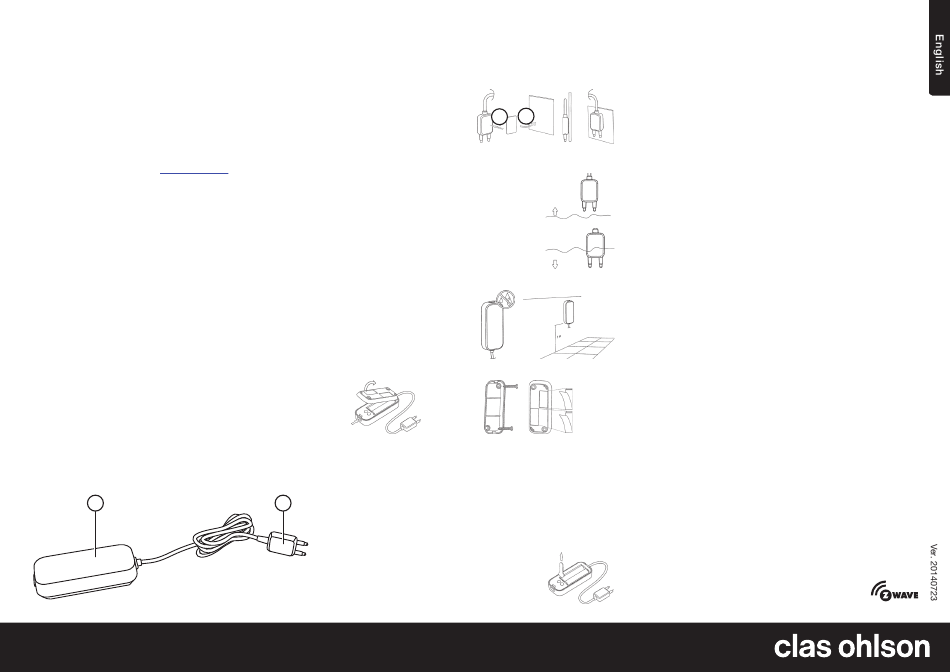

Product description
Battery powered, wireless water sensor for use with Zipabox Duo and
other Z-wave-system products, regardless of make.
1
GREAT BRITAIN • customer service tel: 0845 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
Location
Detector
The water sensor can be used in
two ways. It can detect the pre-
sence of water in places that were
previously dry, or it can detect
the absence of water where water
should be present. The detector
can be attached using the included
double-sided adhesive tape.
for a complete
Detection of rising water level
Decide on an acceptable highest water level and
place the detector in a suitable place accordingly.
Detection of sinking water level
Decide on an acceptable lowest water level and
place the detector in a suitable place accordingly.
Sensor
The sensor should be placed
where it is not exposed to water or
moisture, 1 metre above the floor
and no further than 30 metres
away from the control device.
Mount the sensor with the longer
sides perpendicular to the floor.
1. Press the button on
the end of the sensor
and remove the base.
Note: If you mount the sensor using screws, first make sure that there
are no hidden electrical cables or water pipes in the wall/ceiling which
2
could be damaged by drilling the mounting holes.
Installation
1. Press the button on the end of the sensor and
remove the base.
1. Sensor
2. Remove the plastic tab to activate
2. Detector
the batteries. The LED indicator on the sensor
will flash for 8 seconds.
3. Set your Z-Wave control device to learning mode.
4. Push the Z-Wave button on the sensor to connect it to your
5. If the connection is successful, the LED indicator will shine steadily
2
1 6. If the sensor needs to be re-configured later, you can press
Uninstallation
1. Set your Z-Wave control device in removal mode and press
Water
2. The LED indicator on the sensor will flash for 8 seconds if
3. If the uninstallation was unsuccessful, the LED indicator will shine
Water
Reset
Hold the Z-Wave button in for 20 seconds to reset the sensor to factory
settings. If the resetting was successful, the LED indicator will shine
steadily for 2 seconds.
Care and maintenance
•
•
Disposal
This product should be disposed of in accordance with local regulations.
2. Attach the base to a wall using
If you are unsure how to proceed, contact your local council.
the included screws or double-
sided adhesive tape.
Specifications
Frequency
Batteries
Range
Operating temperature
existing Z-Wave network.
for 10 minutes. During this period the sensor can be configured
from the control device.
the "Wake up" button. The LED indicator will shine steadily for
10 minutes. During this period the sensor can be configured
from the control device.
the Z-Wave button on the sensor to uninstall it.
the uninstallation was successful.
steadily for 8 seconds.
Always remove the batteries if the product is not to be used for
a long time.
Clean the product using a lightly moistened cloth. Use only mild
cleaning agents, never solvents or corrosive chemicals.
868.42 MHz
2 × AAA/LR03
30 m indoors,
100 m outdoors in optimum conditions
–10 to +60 ºC/14–140 ºF
