1.5 Installation and electrical plans

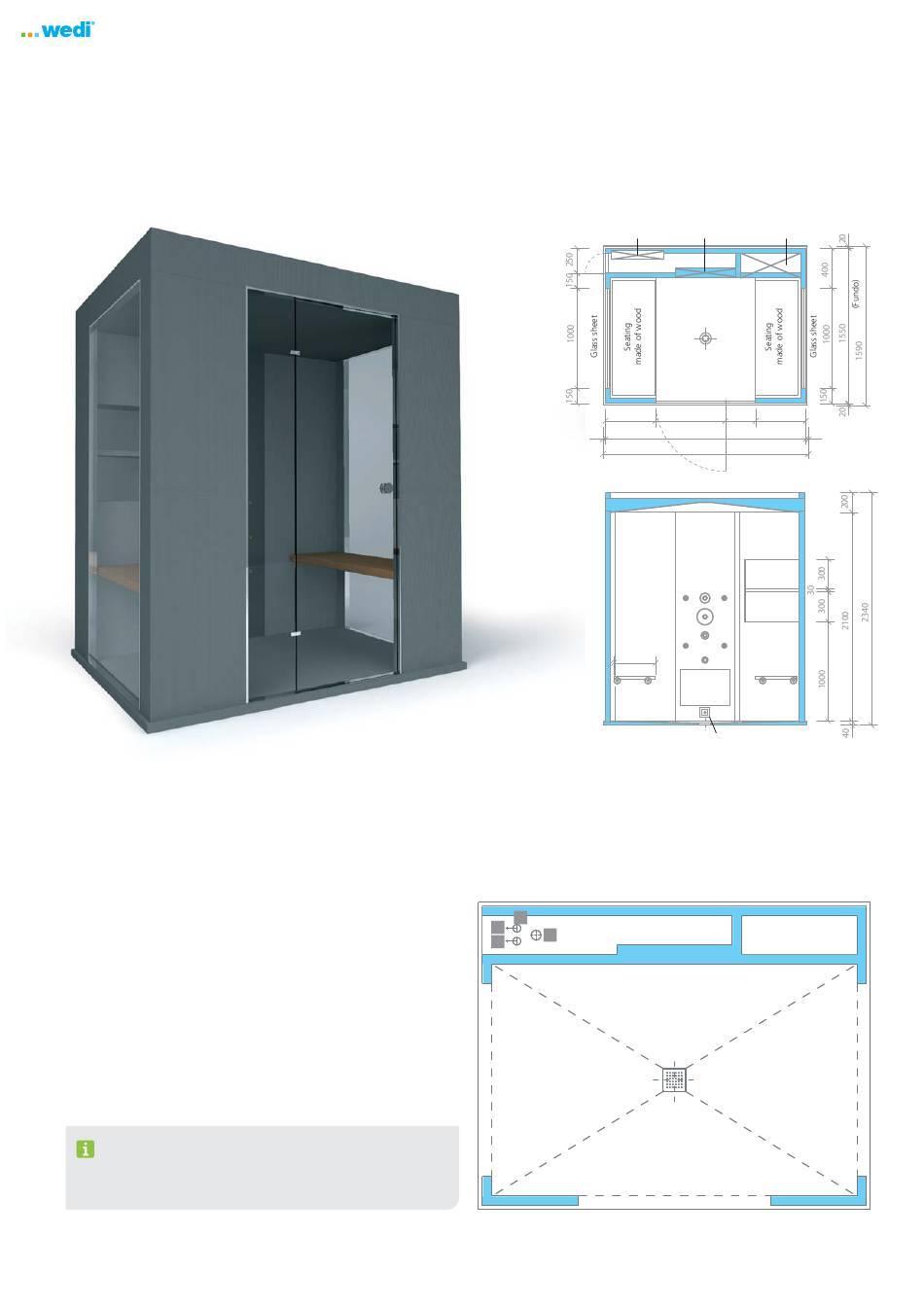

1.5.1 Sanoasa Libertà
1. Electric supply
Lead steam generator 400V
2
Alternative (3x6mm ) 230V
Lead light technology 230V
2. Warm water connection
3/4 inch outside thread, minimal flow pressure 3 bar
3. Cold water connection
3/4 inch outside thread minimal flow pressure 3 bar
4. DN 50 drain
Note:
You can find a summary of the Sanoasa Libertà equipment in the enclosed
technology manual on page 4.
32
3/N/PE 6.6KW 3x16A
1/n/PE 6.6KW 32A
1/N/PE 10A
Steam generator
500
20
420
30
1
2
4
3
Shower panel Shelf
Fundo
Glass sheet
700 300 500
2000
20
2040
(Fundo)
Shelf
vapour discharge
