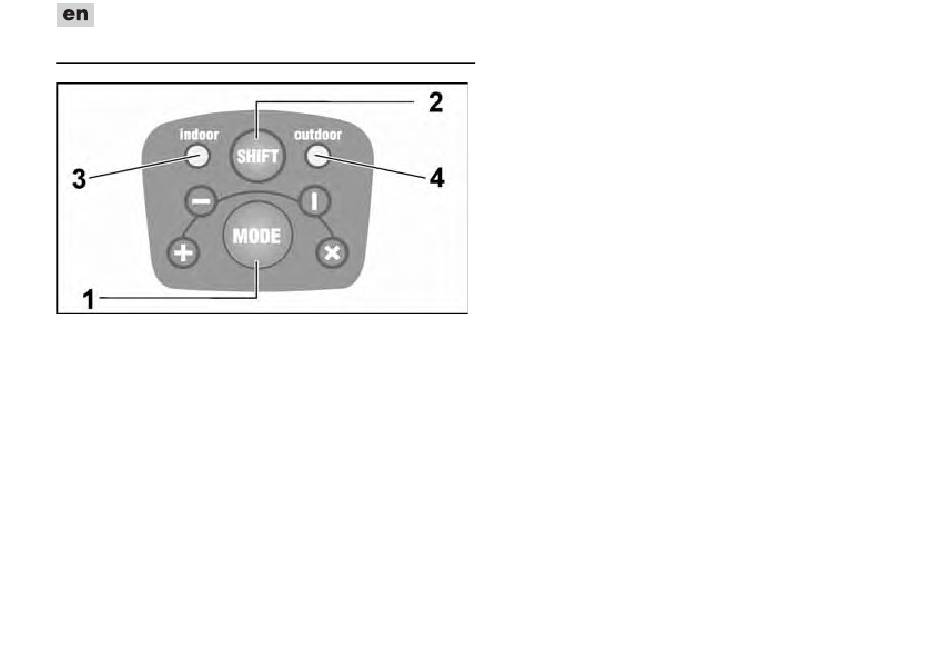

Control panel

1 Operating mode button
Switches in succession through the
4 different laser projection types.
1x horizontal beam
2x vertical beams
3x horizontal and vertical beams + self-
levelling switched off/blocked
4x horizontal and vertical beams + self-
levelling switched on (standard operating
mode when the device has been
switched on)
2 Ambient mode switchover button
Switches the laser beam from indoor
to outdoor conditions.
Indoor mode is used for short distances at
normal ambient light levels (in closed rooms).
Activate outdoor mode at high ambient light
levels or in bright sunlight. In outdoor mode
the device operates with a pulsed laser beam.
This is a little darker than the beam for indoor
mode.
3 LED Indoor mode
4 LED Outdoor mode
The LED (3 or 4) is lit green when self-levelling
is switched on.
The LED (3 or 4) is lit red when the self-levelling
range is exceeded (± 4°) or when self-levelling is
switched off/blocked.
The LED (3 or 4) flashes red when the battery
capacity is low. Charge the battery!
