Installation and User Manual Rocher Elite

2.20. Principle image when Elite is used as control panel

Heater
Adapter circuit
board OLEA 103
Heater
Adapter circuit
board OLEA 103
Sensor OLET 31
Heater
Sensor cable
1= Blue
2= White
3= Red
4= Yellow
A1 Yellow
A2 Green
A3 Red
A4 Black

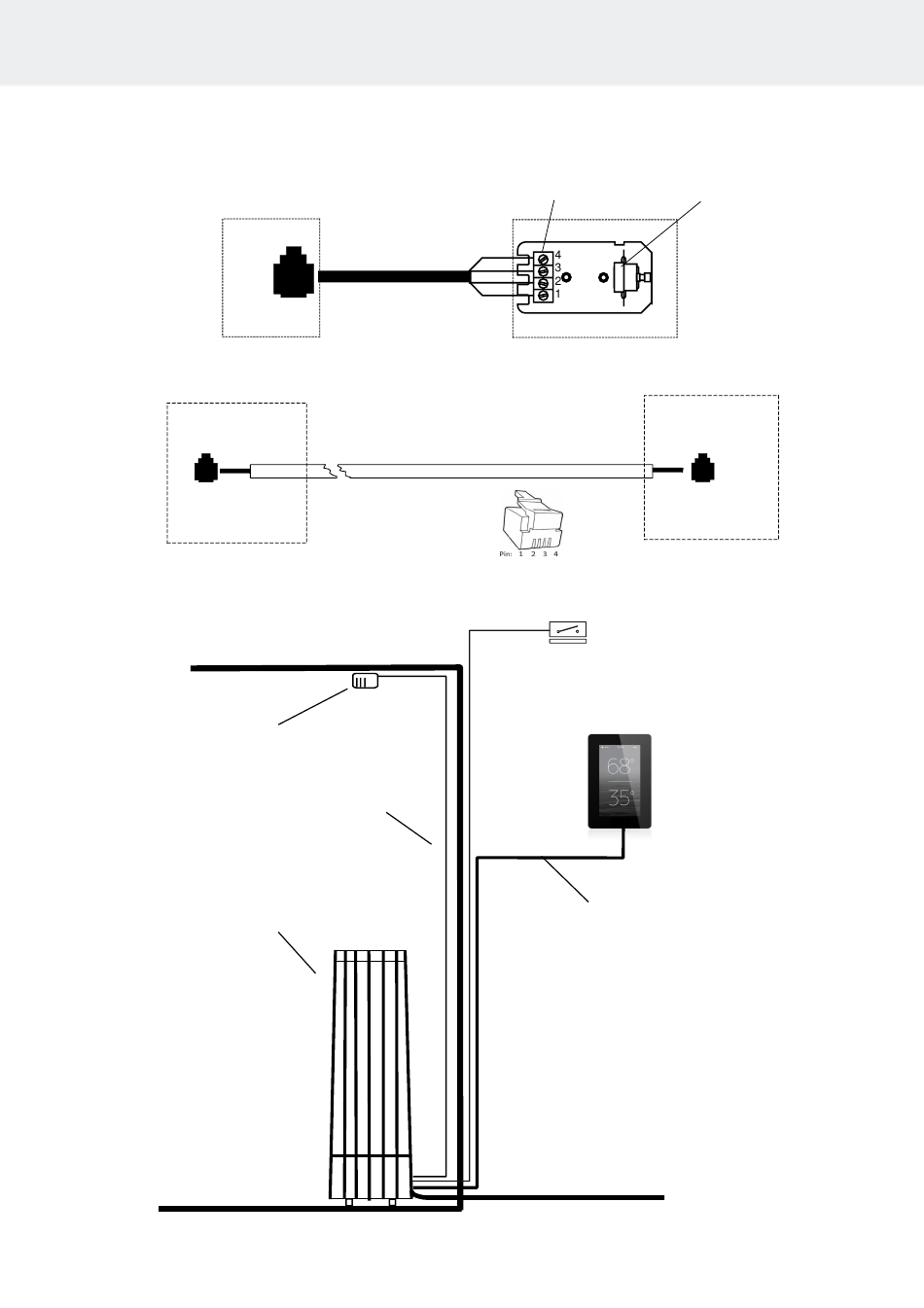

Principle image
Silicone 4 x 0,25 mm²
Figure 10 Principle image
Terminal block
Limiter
Sensor OLET 31
Control panel
Elite
Door switch
Control panel
Elite
NOTE!
See more detailed
installation instructions
in the control panel
operating instructions
4 x 0,15 mm²
Input
230V – 240V 1N~ / 2~
230V 3~
400V – 415V 3N~
